How To Choose An RFID Reader for Your Project
Introduction
RFID (Radio Frequency Identification) technology has transformed numerous industries through its automated data capture and tracking capabilities. This article delves into the critical importance of choosing the appropriate RFID reader to ensure the success of your project.
Before selecting RFID readers for your projects, you need to know basic information about RFID readers.
Understanding RFID Readers
What is an RFID Reader?
An RFID reader is a device that uses radio waves to communicate with RFID tags, capturing data for identification and tracking purposes. It serves as the interface between the RFID tags and the backend system.

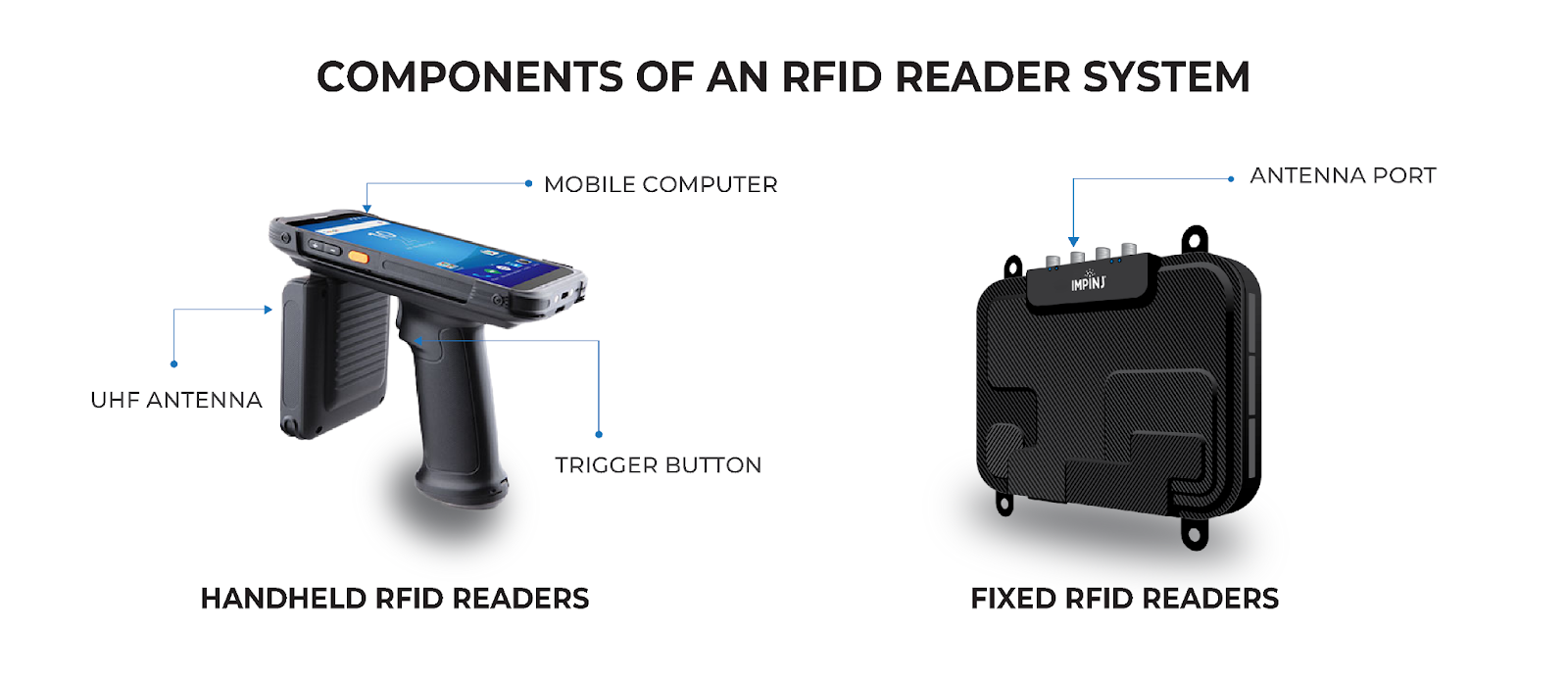

Components of an RFID Reader System (Handheld and Fixed RFID Readers)
An RFID reader system typically includes:
RFID Cable (Fixed RFID Reader): An RFID cable is an essential component of fixed RFID reader systems, providing a connection between the RFID reader and the antenna. These cables are designed to ensure efficient signal transmission, minimizing loss and interference. Properly selected and installed RFID cables help maintain the integrity and performance of the RFID system, ensuring reliable data capture and communication.
Antenna: The antenna is a crucial component of an RFID reader system. It is responsible for transmitting and receiving radio signals that communicate with RFID tags. The antenna emits radio waves in specific frequencies, which energize RFID tags and enable them to transmit their data back to the reader. Antennas come in various shapes and sizes depending on the application and environment where they are deployed. They can be linear polarized, which means they read tags in a specific orientation, or circular polarized, which allows tags to be read in any orientation.
Power Supply: The power supply provides the necessary electrical power for the operation of the RFID reader system. This can be in the form of batteries for portable readers or direct electrical connections for fixed readers. The power supply ensures that the reader components, including the antenna, transceiver, and controller, have sufficient power to operate effectively. Depending on the application, power supplies can vary in size and capacity to meet the demands of the RFID reader system.
Types of RFID Readers
RFID readers can be categorized into several types:

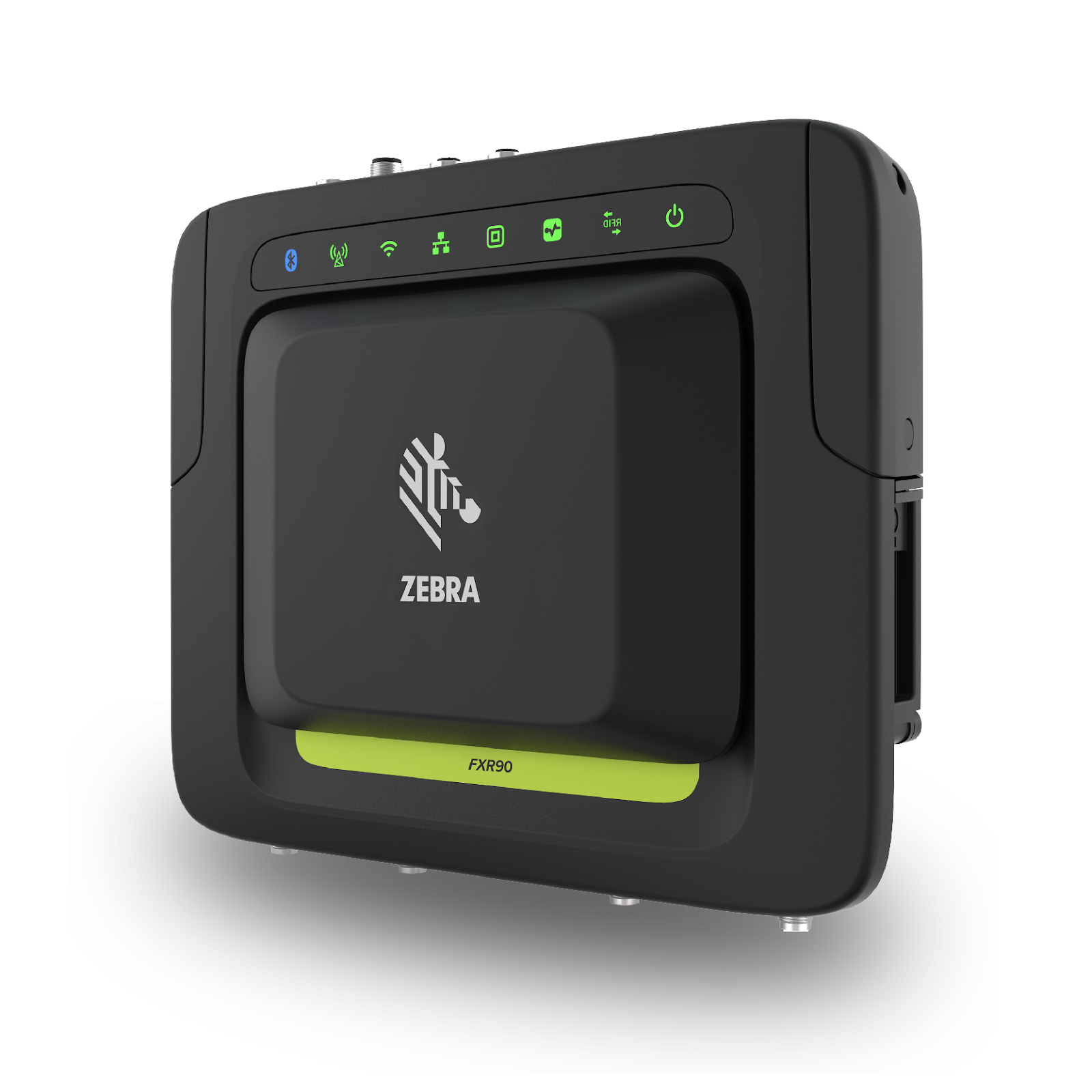

Fixed Readers:
Fixed RFID readers are stationary devices installed in specific locations for continuous monitoring and tracking of RFID tags. They are typically used in environments where items pass through specific points, such as entryways, conveyor belts, or assembly lines. Fixed readers are ideal for applications that require automated data collection and continuous monitoring without manual intervention.
For ExampleIn a warehouse setting, the Impinj R700 RAIN or Zebra FX9600 fixed RFID readers are installed at the entrance and exit points of storage areas. As pallets of goods move through these points, the fixed readers automatically scan and record the inventory, providing real-time visibility into stock levels and movements.

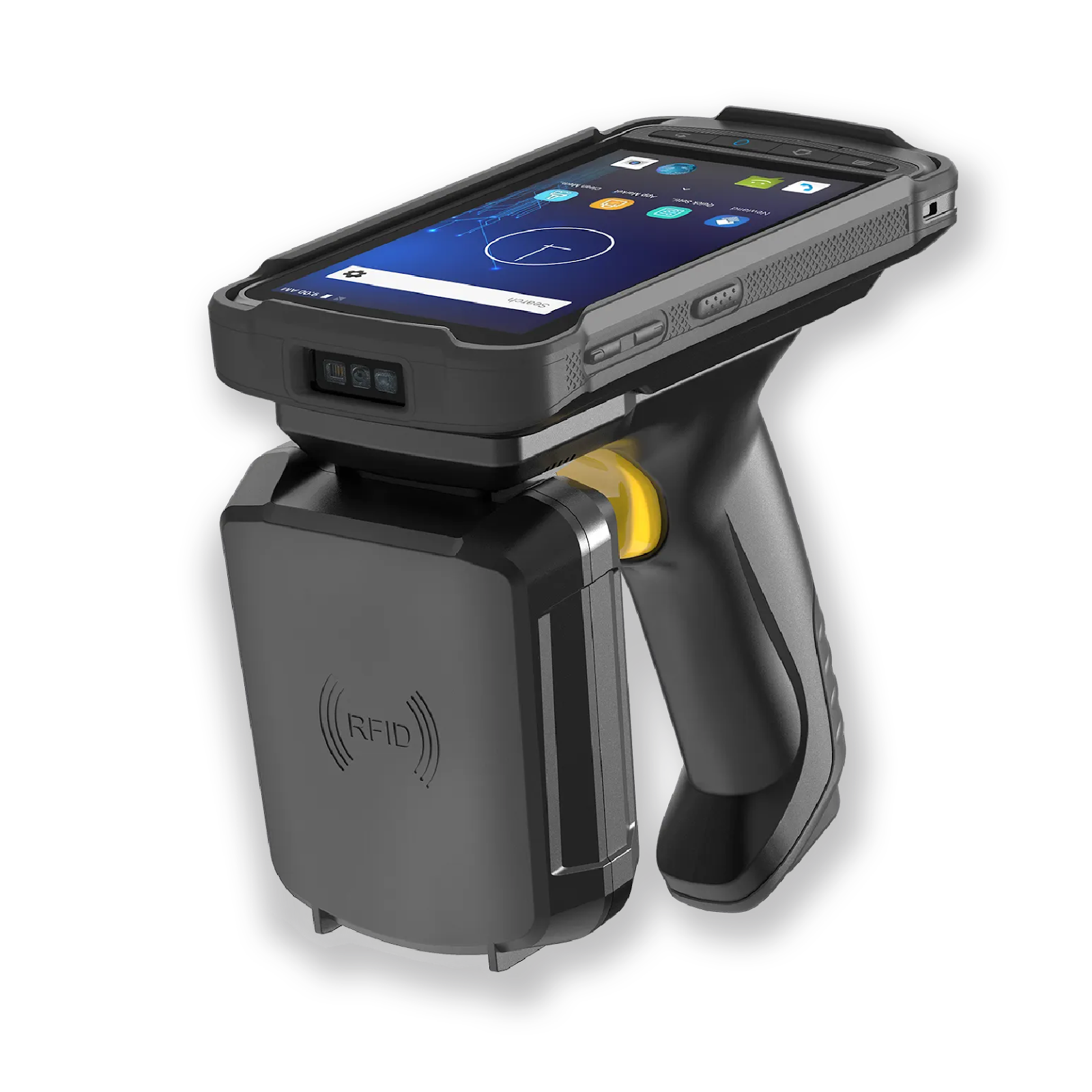

Handheld Readers:
Handheld RFID readers are portable devices designed for on-the-go scanning and data collection. They offer flexibility and mobility, allowing users to scan RFID tags in various locations and environments. Handheld readers are commonly used in inventory tracking, asset tracking, and field service applications where mobility and ease of use are essential.
For example, a field technician uses the Newland MT90 or Chainway C66 handheld RFID reader to track and manage equipment at different job sites. The reader allows them to scan RFID tags attached to tools and assets, updating their location and status in real-time on a mobile device.

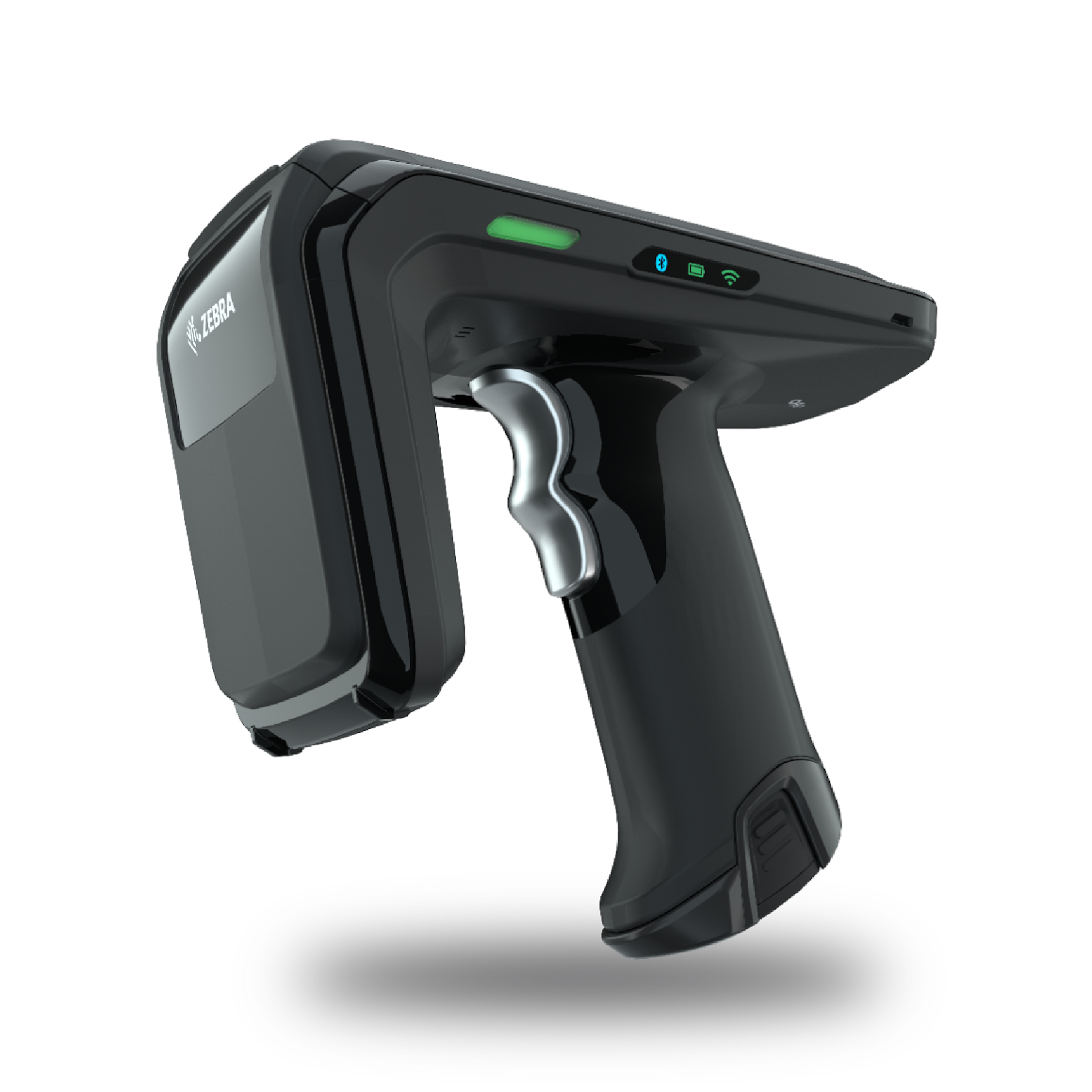

Sled Readers:
Sled RFID readers are handheld devices that incorporate RFID scanning capabilities along with a docking station for mobile devices like smartphones or tablets. This integration combines the functionality of both barcode scanning and RFID data capture into a single device. Sled readers are versatile and offer the benefits of RFID technology alongside other data collection methods.
For Example,Retail store employees use the Zebra RFD40 and Chainway R6 UHF sled RFID reader attached to a mobile device to scan both RFID tags and barcodes on items. This enables them to manage inventory levels, track product movements, and provide accurate stock information to customers using a single device.

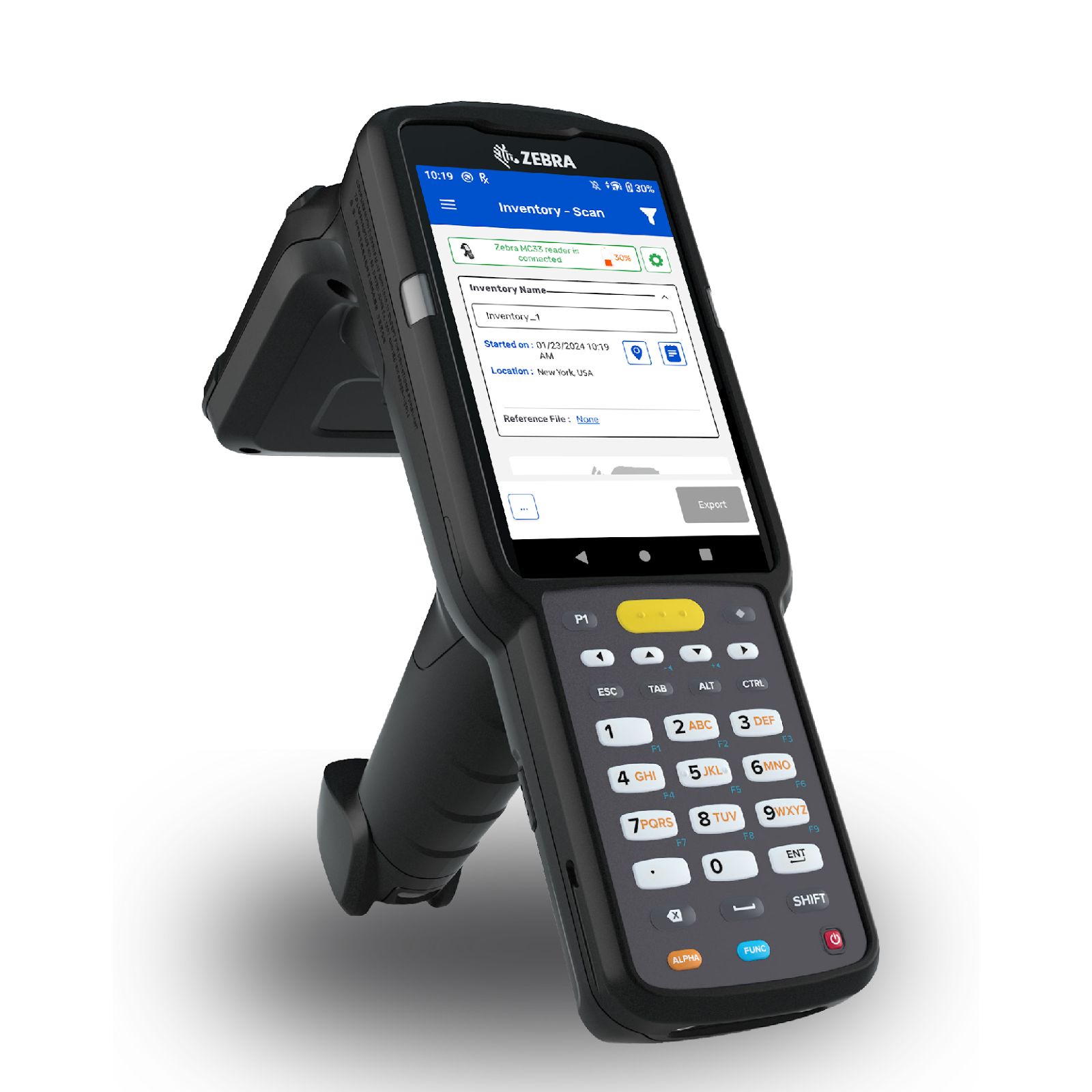

Integrated / Mobile Computer RFID Readers:
Integrated RFID readers are embedded within other devices such as mobile computers, tablets, or industrial terminals. These readers combine RFID capabilities with the functionality of the host device, providing a compact and unified solution for data collection and processing. Integrated readers are suitable for applications where space-saving and multi-functionality are priorities.
For Example, A logistics company uses the Zebra MC3330xR and TSL 1166 rugged mobile computer with an integrated RFID reader to track shipments and inventory in real time. The integrated reader allows warehouse staff to scan RFID tags, update inventory records, and perform other tasks seamlessly without switching between multiple devices.
Factors to Consider When Choosing an RFID Reader for Your Project
Read Range
RFID readers vary in their read ranges:
Short-Range Readers: These devices have a read range of up to 1 meter, suitable for desktop applications or environments where tags are in close proximity, such as retail point-of-sale or access control systems.
Medium-Range Readers: Covering distances up to 8 meters, these readers are ideal for warehouse and industrial environments where assets are spread out across larger areas and need to be scanned from a moderate distance.
Long-Range Readers: Capable of reading tags from distances of 12 meters or more, these devices are used in applications like vehicle tracking or monitoring large areas such as parking lots or outdoor storage yards.

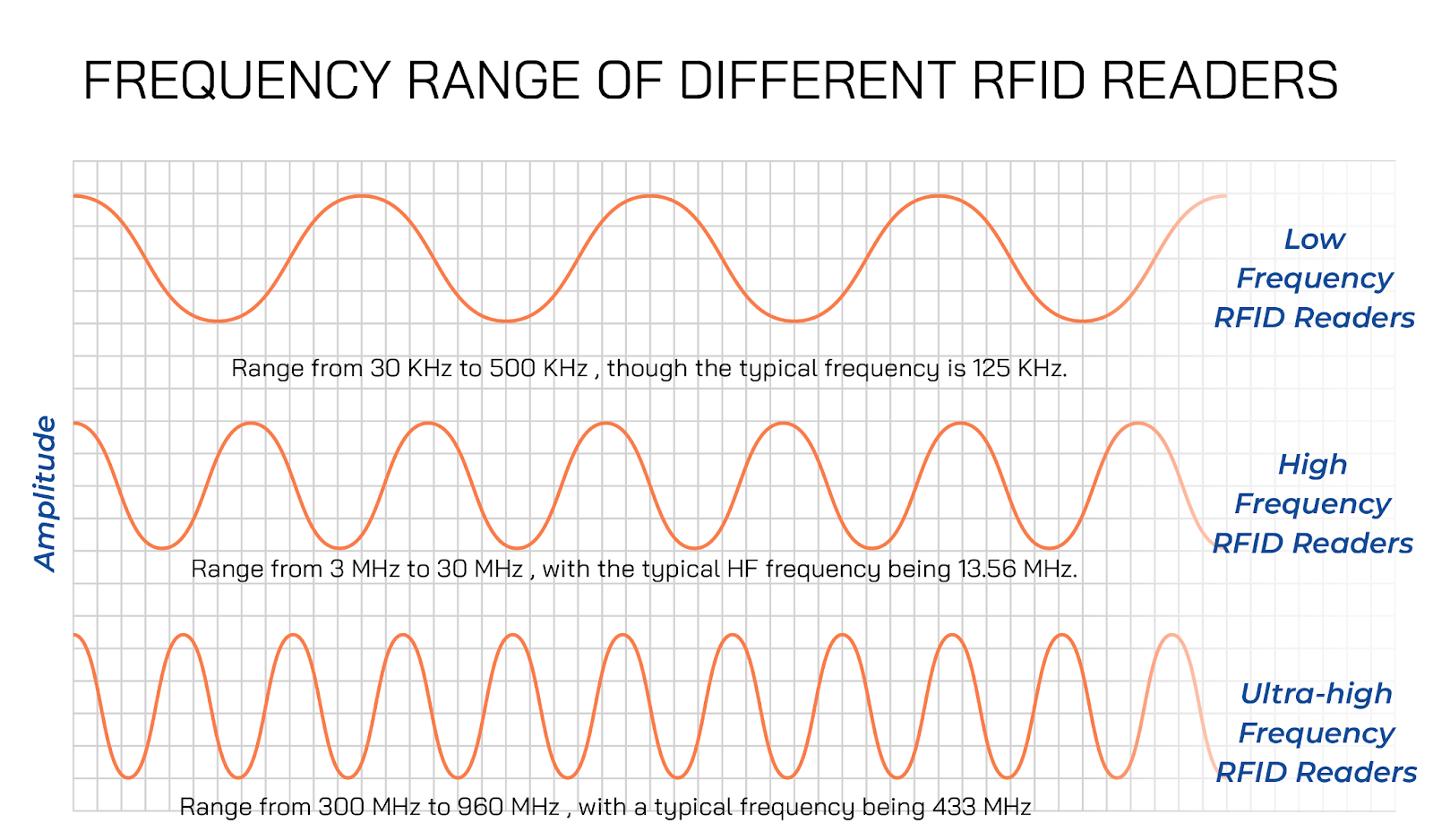

Frequency Range
RFID operates on different frequencies:
LF (Low Frequency): Operating at frequencies around 125 kHz, LF RFID is suitable for access control systems and animal tracking because it has better penetration capabilities through materials like water and metal.
HF (High Frequency): Operating at 13.56 MHz, HF RFID is commonly used in payment systems and smart cards for short-range data exchange. It offers faster data transfer rates compared to LF.
UHF (Ultra-High Frequency): Operating at 860-960 MHz, UHF RFID is widely used for inventory tracking and supply chain management. It offers longer read ranges and faster data transfer, making it suitable for high-volume applications.
Power Source
RFID readers can be powered by:
Battery: Handheld readers use rechargeable batteries, providing mobility and flexibility for field operations. However, they require regular recharging to ensure continuous operation.
Wired: Fixed readers are powered through wired connections, offering a continuous power supply. This ensures uninterrupted operation but restricts mobility since the reader must remain tethered to a power source.
Choose the Fixed RFID Reader According to the Antenna Type for Your Business
RFID readers use different antenna types:
Linear Polarization: This type of antenna reads RFID tags in a specific orientation, making it suitable for applications where tags are moving along a conveyor belt or need to be read from a consistent direction. For instance, in manufacturing or logistics settings where items are consistently oriented.
Circular Polarization: These antennas read RFID tags in any orientation, which is ideal for handheld and fixed readers in environments where tags can be randomly oriented. It provides flexibility in tag placement and is commonly used in retail, healthcare, and asset-tracking applications.
Connectivity Options
RFID readers offer various connectivity options for Fixed Readers and Handheld Readers:
Connectivity Options | Fixed Readers | Handheld Readers |
USB | Fixed readers often have USB ports for direct connectivity to computers or other devices. | Handheld readers commonly feature USB ports for data transfer and charging. |
Ethernet | Ethernet connectivity is common in fixed readers, allowing for network integration and real-time data streaming. | Ethernet connectivity is less common in handheld readers but can be found in some models for more robust networking capabilities. |
Bluetooth | Bluetooth connectivity is less common in fixed readers but can be found in some models for local data transfer and device pairing. | Bluetooth is commonly integrated into handheld readers, enabling wireless communication with mobile devices and integration with other Bluetooth-enabled systems. |
Wi-Fi | Fixed readers commonly feature Wi-Fi for extended wireless range and network connectivity, ideal for large-scale deployments and integration with enterprise systems. | Wi-Fi is less common in handheld readers but is available in some models for broader networking and integration capabilities. |
Cellular | Cellular connectivity is rare in fixed readers due to power and cost considerations. | Some advanced handheld readers offer cellular connectivity for remote or mobile applications. |
Application-Specific Considerations for Choosing an RFID Reader
Asset Tracking
Track assets across various industries, ensuring location and status updates to prevent loss, optimize asset utilization, and improve maintenance scheduling with TagMatiks AT and TagMatiks AT Lite.
Retail Applications
Improve customer experience with quick and accurate inventory counts and stock replenishment, ensuring products are always available for purchase.
Healthcare Applications
Ensure patient safety and streamline operations with asset and personnel tracking using RFID, enhancing inventory management and compliance with regulatory requirements.
Industrial Applications
Monitor and manage tools, machinery, and production assets for enhanced operational efficiency, minimizing downtime, and optimizing workflow.
Warehouse Management
Optimize warehouse operations with RFID-enabled inventory tracking, improving accuracy in picking, packing, and shipping processes, and reducing inventory holding costs.
Best Practices for Selecting RFID Reader
Tag Compatibility
Choose readers that support the RFID tag type (passive, active) and frequency required for your applications.
Environment Considerations
Consider environmental factors like temperature, humidity, and physical obstructions to select readers that can operate effectively in challenging conditions.
Maintenance and Support
Regularly maintain readers and ensure access to technical support for troubleshooting and upgrades.
Integration with RFID Software
Select readers compatible with RFID software like TagMatiks Wedge, TagMatiks Asset Tracking, and TagMatiks AT Lite for efficient asset tracking, data management, analytics, and reporting.
Conclusion
In conclusion, selecting the right RFID reader is crucial for project success across various industries. By understanding the technology, assessing project requirements, and considering application-specific needs, organizations can enhance their operations and achieve significant ROI with RFID technology.
Frequently Asked Questions
1. What is an RFID reader?
Answer- An RFID reader is a device that uses radio waves to read and capture information stored on RFID tags.
2. What factors should I consider when choosing an RFID reader?
Answer- When choosing an RFID reader, consider factors such as cost, read range, frequency, power source, antenna type, connectivity options, and application-specific requirements. These elements will help ensure the reader meets your specific needs and budget.
3. What are the different types of RFID readers available?
Answer- RFID readers can be categorized as fixed, handheld, sled, or integrated, each suited for different operational needs.
4. What are the advantages of using fixed RFID readers over handheld ones?
Answer- Fixed readers offer continuous monitoring and are ideal for stationary applications, while handheld readers provide mobility for on-the-go scanning.
5. How do I ensure compatibility between RFID readers and existing software systems?
Answer- Look for RFID readers that are compatible with your existing software or consider RFID software solutions like TagMatiks Wedge, TagMatiks AT, and TagMatiks AT Lite.
6. What are some application-specific considerations for choosing an RFID reader?
Answer- Considerations include retail applications for inventory tracking, healthcare for patient tracking, and industrial applications for asset tracking.
