Description

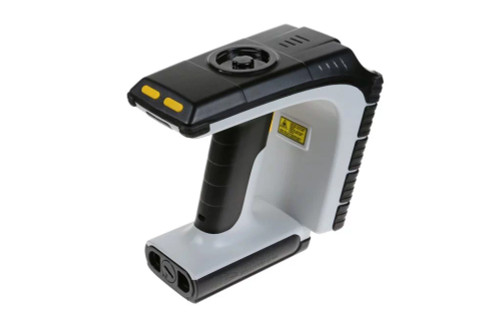

1166 Bluetooth® Rugged UHF RFID Reader-
The 1166 Bluetooth® Rugged UHF RFID Reader provides high performance UHF RFID reading/writing with all host devices in an ultra-tough and rugged form factor.
Features & Benefits:
- Ultra Rugged Design:Highly resistant to water, dust and mechanical trauma.
- Batch Mode Operation: The 1166 can store over 250 million* transponder EPCs – date and time stamped by the on-board Real Time Clock.
- All Day Scanning: A high capacity battery enables non-stop operation of the reader over the full working day.
- Attach Smartphones or Handhelds: Use standalone or devices that can be mounted on top of the reader using an easy press-lock adapter to provide a one-piece solution.
- OSIndependence: Operates with Android, iOS and Windows.
- Docking Station: Docking Station (separate purchase) provides charging of the 1166 Reader and direct USB data connectivity with the embedded NAND storage card.
Ordering Options:
TSL | 1153 | 1128 | 2128 | 2128P | 2128L | 1166 |
Read Range | Up to 2 m (6.5 ft) | Up to 5.5 m (18 ft) | Up to 6 m (19.6 ft) | Up to 9 m (29.5 ft) | Up to 15 m (49 ft)* | Up to 9 m (29.5 ft) |
Maximum RF Output Power | Up to 26 dBm EIRP | Up to 32 dBm EIRP | Up to 33 dBm EIRP | Up to 34 dBm EIRP | Up to 35 dBm EIRP | Up to 34 dBm EIRP |
IP Rating | IP54 | IP54 | IP54 | IP54 | IP54 | IP67 |
Bluetooth® version | Bluetooth® 2.1 | Bluetooth® 2.1 | Bluetooth® 4.2 | Bluetooth® 4.2 | Bluetooth® 4.2 | Bluetooth® 2.1 |
Apple Mfi certified | Yes | Yes | Yes | Yes | Yes | Yes |
Optional 2D barcode | Yes | Yes | No | Yes | No | Yes |
Internal Storage | Up to 32 GB* | Up to 32 GB* | Up to 32 GB* | Up to 32 GB* | 16 GB* | 16 GB* |
No. of tags that can be Store | Up to 500 million tags | Up to 500 million tags | Up to 500 million tags | Up to 500 million tags | Up to 250 million tags | Up to 250 million tags |
Drop Spec | 1.2 m* | 1.2 m* | 1.2 m* | 1.2 m* | 1.2 m* | 1.8 m* |
Mounting Options | Wearable | Slide-on Mounts* | ePop-Loq® Mounts | ePop-Loq® Mounts | ePop-Loq® Mounts | Pop-Loq® Mounts |
Ordering Options:
- 1166-ES1 - 1166 Bluetooth® Rugged UHF RFID reader with 2D Imager
- 1166-EX1 - 1166 Bluetooth® Rugged UHF RFID reader (no imager)
Accessories Options:
- 1166-CRD-01-KIT - 1166/2166 Docking Station, 65W PSU and Mini USB lead
What is included in the Box?
- TSL 1166 UHF RFID Reader
What is the Standard warranty for the TSL 1166 Reader?
The TSL® 1166 reader is warranted against manufacturing defects for a period of one year (12 months) from the date of shipment.
What operating systems are compatible with the TSL 1166 Reader?
The TSL 1166 Reader is compatible with a wide range of operating systems, including Android, iOS and Windows.
Additional Information
AIR PROTOCOL: |
ISO 18000-63 and EPCglobal Gen2v2 |
FREQUENCY: |
865 - 868 MHz (ETSI) |
TRANSMIT POWER: |
10mW to 1 W |
WIRELESS COMMUNICATIONS: |
Bluetooth |
DATA CAPTURE OPTIONS: |
RFID, 2D imager (Option) |
DIMENSIONS: |
177 x 94 x 170 mm ( 6.97 x 3.70 x 6.69 in) (LxWxH) |
WARRANTY: |
12 month standard warranty |
