Zebra Handheld RFID Readers Comparison: MC3330xR, MC3390xR, RFD40 Series, RFD9090, & RFD9030

Introduction

Zebra Technologies stands as a global leader in enterprise asset intelligence, offering cutting-edge RFID, barcode scanning, and mobility solutions. Their handheld RFID readers are trusted by businesses across retail, logistics, healthcare, manufacturing, and more for tracking, visibility, and automation.

Choosing the right Zebra RFID handheld reader is crucial, as it can directly impact operational efficiency, return on investment (ROI), and scalability. This blog provides a comprehensive comparison of Zebra's most popular handheld RFID models: integrated all-in-one readers and sledge-style modular readers.

Overview of Zebra’s RFID Handheld Reader Categories

Zebra Integrated Readers

Integrated RFID readers—such as the Zebra MC3330xR and MC3390xR—are all-in-one mobile computing devices that combine RFID tag reading, barcode scanning, and data processing in a single rugged unit. These handhelds are equipped with built-in antennas, Android operating systems, physical keypads or touchscreens, and enterprise-grade wireless connectivity. Since they don’t require any additional device to function, they are ideal for standalone, out-of-the-box deployments in retail stores, warehouses, healthcare facilities, and manufacturing plants. If you need a compact, mobile, and fully integrated solution that does it all, integrated readers are the go-to option.

Zebra Sled Readers

Sled readers—such as the Zebra RFD40 Series, RFD9030, and RFD9090—are modular RFID solutions that attach to mobile computers or smartphones, effectively turning those host devices into powerful RFID readers. These sleds deliver high-performance RFID and barcode scanning capabilities while offering the flexibility to swap or upgrade host devices as needed. With multiple connectivity options like USB, Bluetooth®, and Wi-Fi 6, sled readers are perfect for businesses that want to maintain device flexibility without sacrificing RFID performance. They're especially suited for retail, field service, and ultra-rugged industrial environments where mobility and modularity matter most.

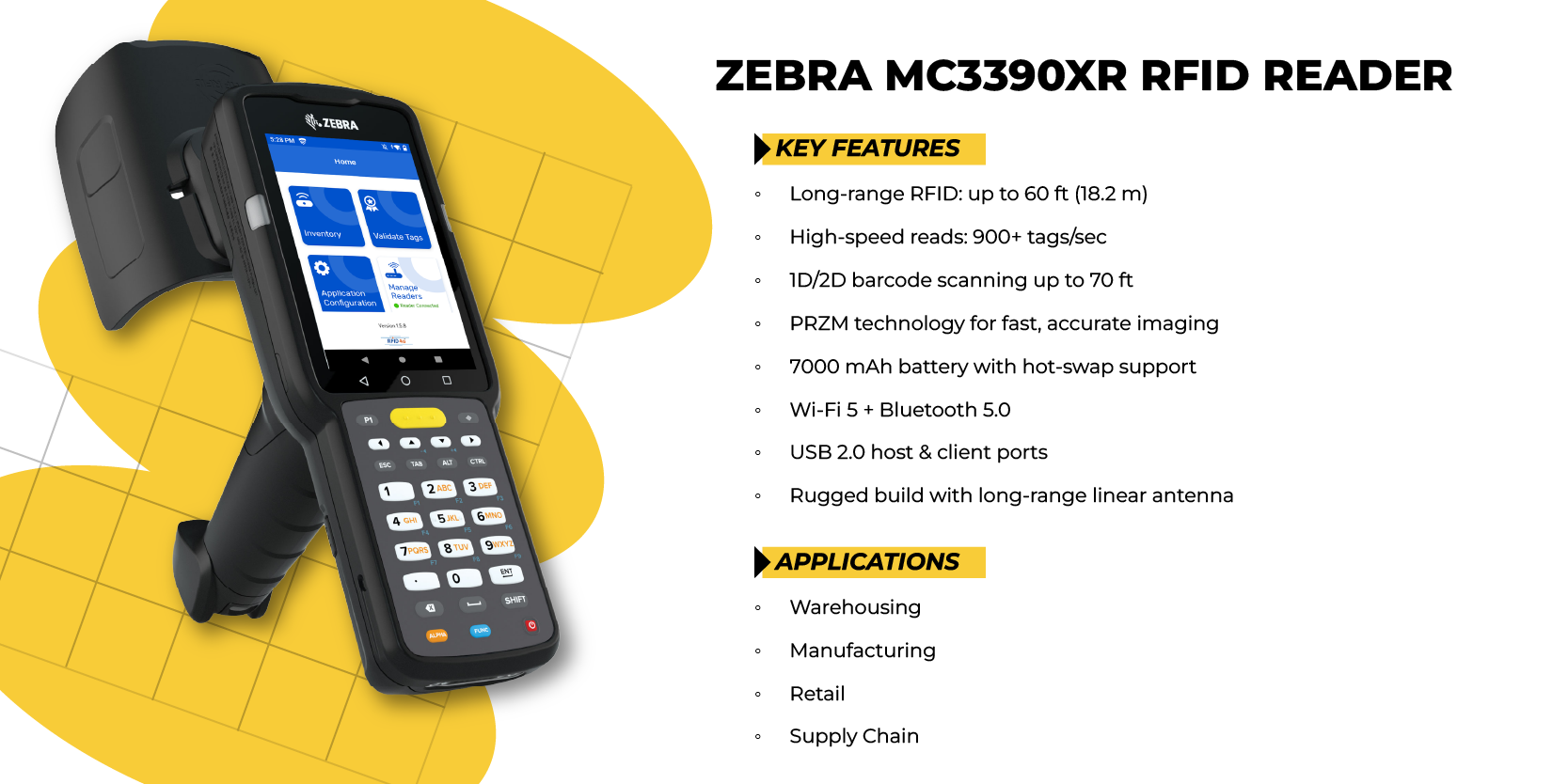

Zebra MC3390xR Integrated UHF/RAIN RFID Reader

The Zebra MC3390xR is a long-range integrated handheld RFID reader designed for industrial environments. It combines powerful RFID reading capabilities with Android computing, delivering extended read range and advanced data capture in a rugged form factor.

Key Highlights

Extended RFID Read Range: Reads tags up to 60 feet (18.2 meters), ideal for large warehouses and dock doors.

High-Speed Tag Capture: Capable of reading over 900 tags per second for high-efficiency scanning.

SE4850 Imager: Captures 1D/2D barcodes from 3 inches up to 70 feet.

Rugged Design: Built to handle tough industrial settings with drop protection and IP54 sealing.

Android 11 OS: Includes Zebra’s Mobility DNA suite for enhanced manageability and user experience.

Specifications

Antenna: Integrated linear polarized RFID antenna.

Operating System: Android 11 with Zebra Mobility Extensions.

Processor & Memory: 2.2 GHz Qualcomm Snapdragon 660, 4 GB RAM / 32 GB Flash.

Display: 4-inch WVGA capacitive touchscreen.

Battery: 7000 mAh PowerPrecision+ battery with hot-swap capability.

Connectivity: Wi-Fi 5 (802.11ac), Bluetooth 5.0, and USB 2.0.

Ideal Use Cases

The MC3390xR excels in demanding industrial environments where long-range scanning is critical. Warehouses benefit from its ability to read tags at heights or distances, while manufacturing operations use it for asset management, raw material tracking, and WIP visibility. It's also ideal for yard management and scanning items on pallets or racks from afar.

Pros & Cons

The MC3390xR is praised for its exceptional read range, fast performance, and rugged build, making it a top choice for industrial and logistics operations. However, its larger size compared to mid-range devices and lack of cellular connectivity may be limiting for mobile field use or compact retail spaces.

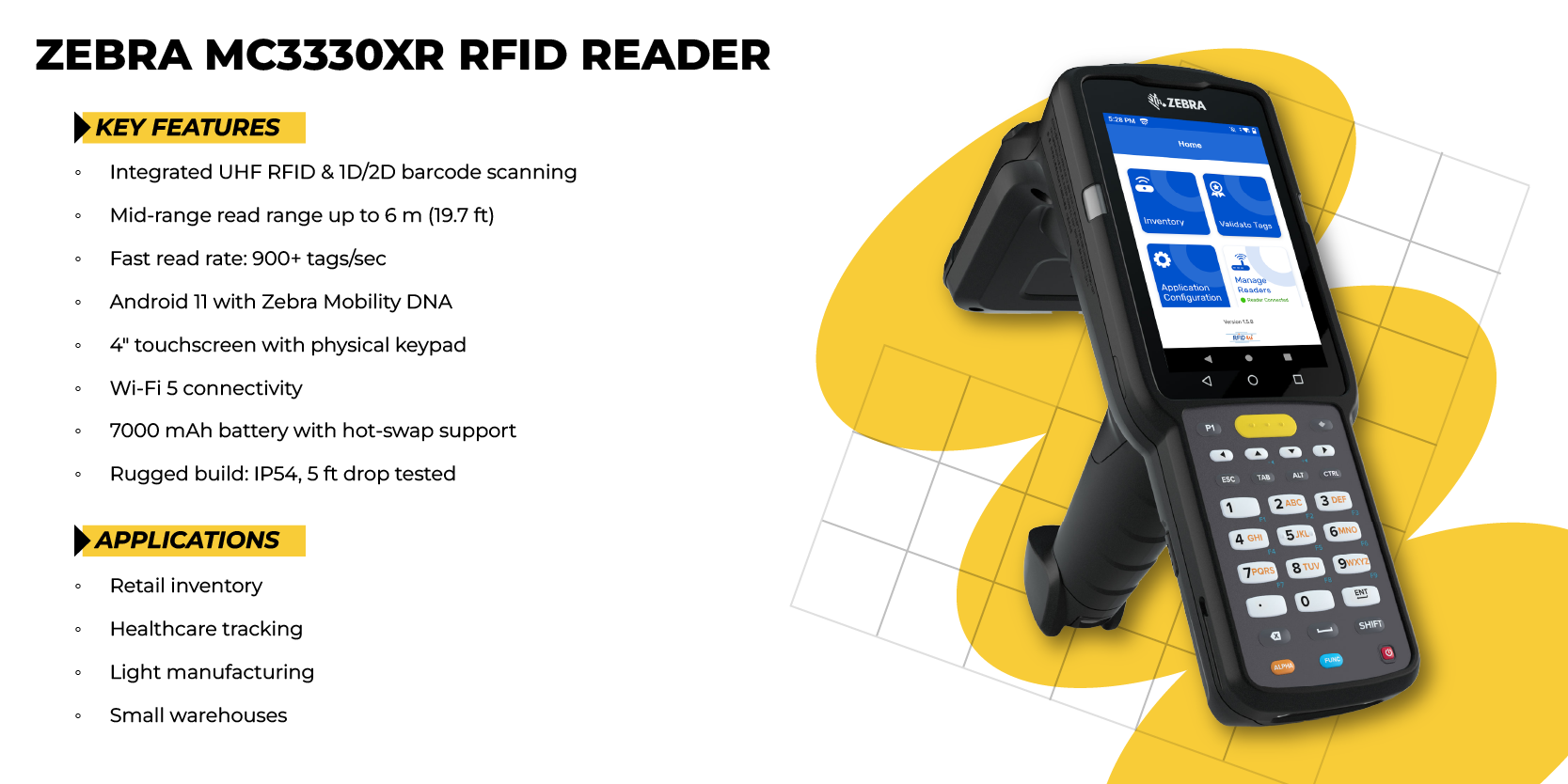

Zebra MC3330xR Integrated UHF/RAIN RFID Reader

The Zebra MC3330xR is a mid-range integrated handheld RFID reader designed for businesses that require accurate tag reading with a user-friendly interface. It offers a blend of performance, ergonomics, and Android-based computing for retail, healthcare, and light industrial applications.

Key Highlights

Mid-Range RFID Performance: Reads RFID tags up to 19.7 feet (6 meters), suitable for indoor environments.

Fast Tag Read Rate: Scans over 900 tags per second for efficient inventory tracking.

Barcode Scanning: Integrated SE4770 imager for reliable 1D/2D barcode capture.

Touch & Keypad Interface: Combines a large 4-inch touchscreen with physical keypad for flexibility.

Enterprise OS: Android 11 powered with Zebra Mobility DNA tools.

Specifications

Antenna: Integrated circular polarized RFID antenna.

Operating System: Android 11 with Zebra’s Mobility DNA.

Processor & Memory: 2.2 GHz Qualcomm Snapdragon 660, 4 GB RAM / 32 GB Flash.

Display: 4-inch WVGA capacitive touchscreen.

Battery: 7000 mAh PowerPrecision+ battery, hot-swappable.

Connectivity: Wi-Fi 5 (802.11ac), Bluetooth 5.0, USB 2.0.

Ideal Use Cases

The MC3330xR is ideal for retail inventory tracking, healthcare equipment auditing, and library systems. Its comfortable design makes it suitable for long hours of scanning in indoor environments. Enterprises value its intuitive interface and integrated barcode scanner for tasks that require dual scanning capabilities.

Pros & Cons

The MC3330xR stands out for its ease of use, balance between performance and size, and reliable scanning abilities. Its shorter read range compared to long-range models limits its use in larger or outdoor facilities, but for retail and light industrial use, it provides excellent value and versatility.

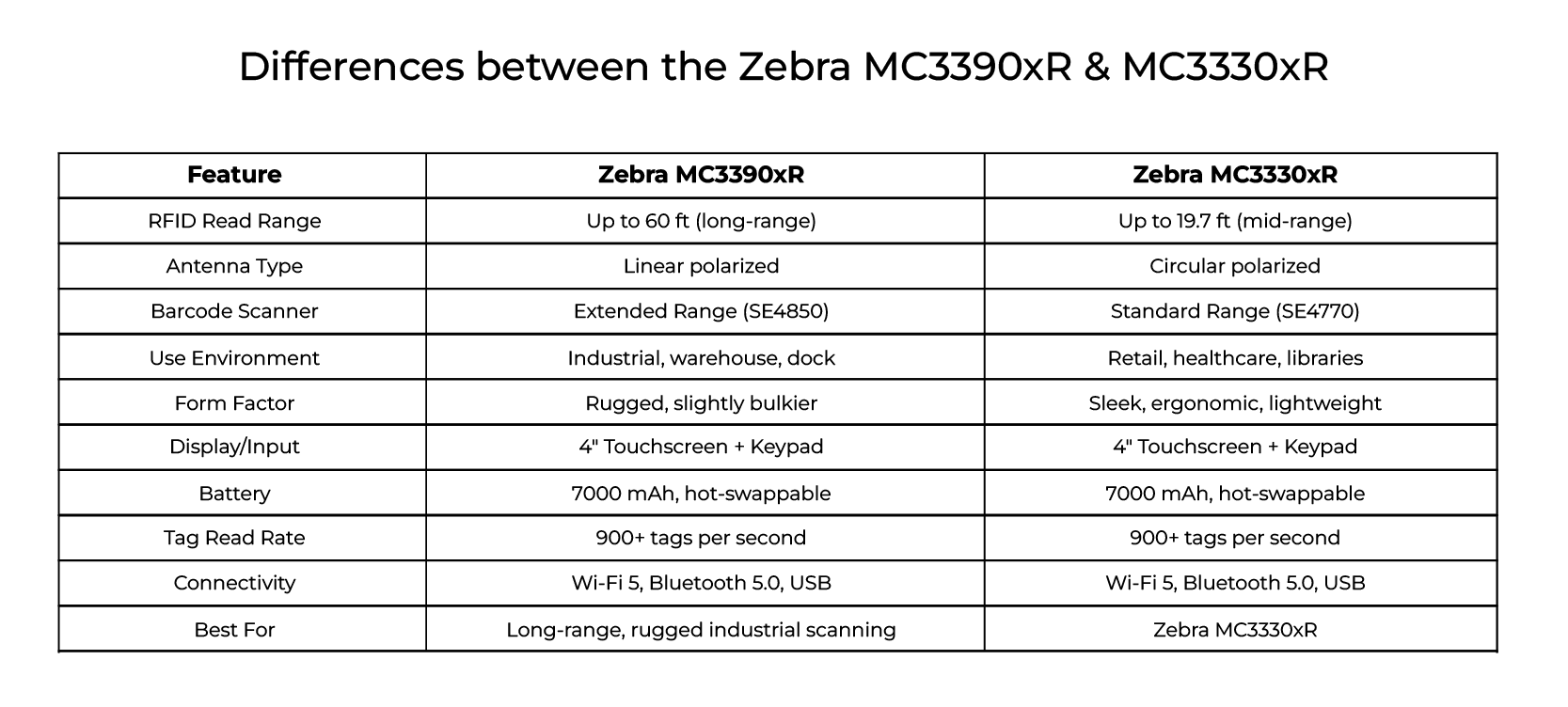

Differences between the Zebra MC3390xR and Zebra MC3330xR handheld RFID readers

Feature	Zebra MC3390xR	Zebra MC3330xR
RFID Read Range	Up to 60 ft (18.2 m) – Long Range	Up to 19.7 ft (6 m) – Mid Range
Antenna Type	Integrated linear polarized	Integrated circular polarized
Barcode Scanner	SE4850 Extended Range Imager	SE4770 Standard Range Imager
Ideal Environment	Warehouses, manufacturing, yard/dock scanning	Retail, healthcare, libraries
Design	Rugged and slightly bulkier	Sleek, lightweight, more ergonomic
Display + Input	4" touchscreen + physical keypad	4" touchscreen + physical keypad
Battery	7000 mAh (hot-swappable)	7000 mAh (hot-swappable)
Tag Read Rate	900+ tags/sec	900+ tags/sec
Operating System	Android 11 with Zebra Mobility DNA	Android 11 with Zebra Mobility DNA
Connectivity	Wi-Fi 5, Bluetooth 5.0, USB (no cellular)	Wi-Fi 5, Bluetooth 5.0, USB (no cellular)
Best For	Long-range, rugged use in industrial settings	Mid-range use in retail and general environments

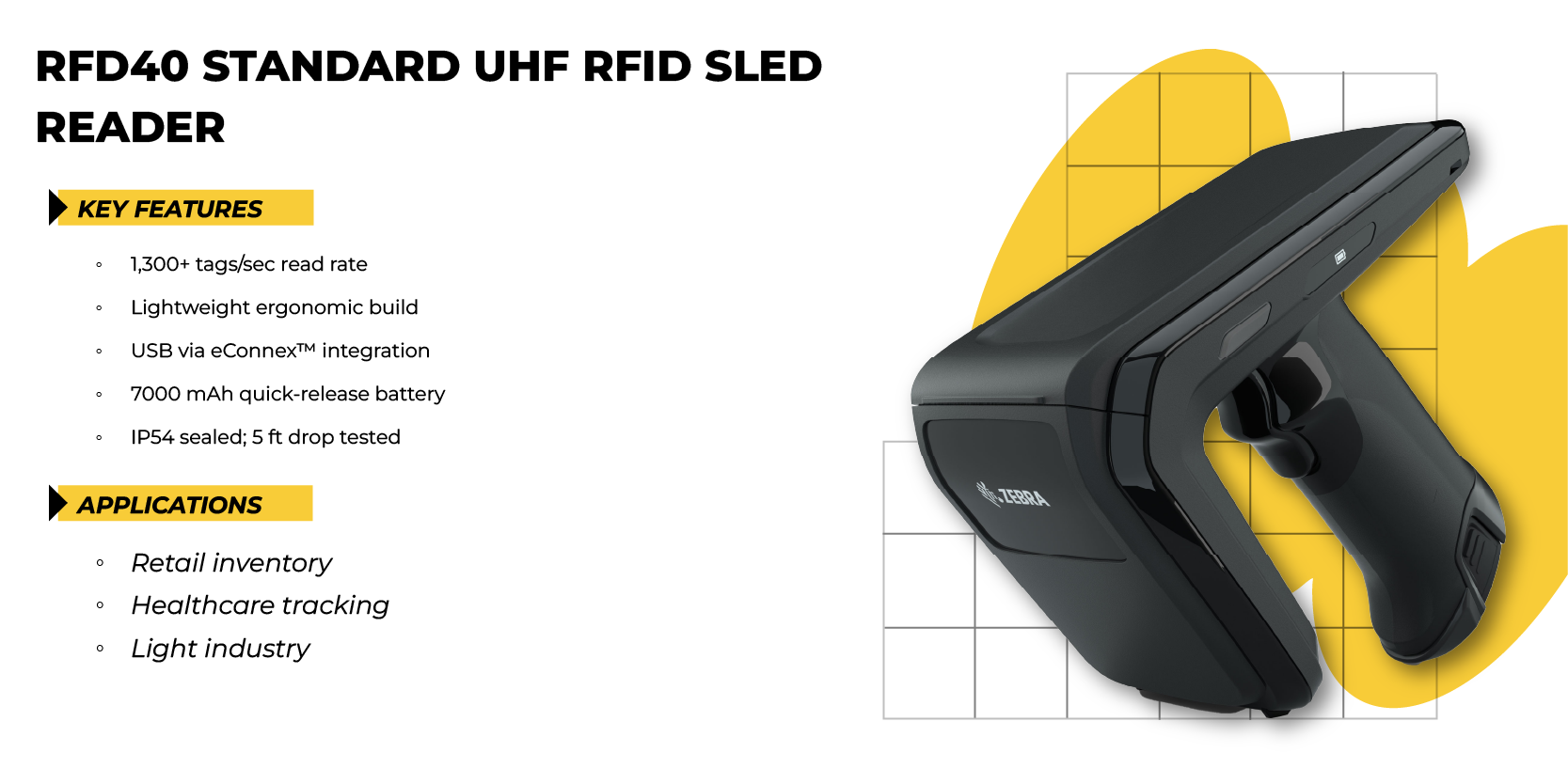

Zebra RFD40 Standard RFID Sled

The Zebra RFD40 Standard RFID Sled is a high-performance, entry-level RFID reader designed to enhance inventory management and asset tracking. With its impressive read rate and ergonomic design, it seamlessly integrates with Zebra mobile computers for efficient data collection.

Key Highlights:

Rapid Tag Reading: Achieves over 1,300 tag reads per second, significantly reducing cycle-counting time.

Ergonomic Design: Lightweight and balanced for comfortable all-day use.

Seamless Integration: Connects directly to Zebra mobile computers via eConnex™.

Durable Build: Withstands 5-foot drops and 500-cycle 0.5-meter tumbles, with IP54 sealing for dust and water resistance.

Specifications:

Dimensions: 5.94 in. H x 3.3 in. W x 6.5 in. L (151 mm x 84 mm x 165.65 mm)

Weight: Approximately 19.1 oz. (541 grams) with battery

Battery: Quick-release, Power Precision+ Li-Ion 7000 mAh

Connectivity: USB via eConnex™

RFID Performance: 1,300+ tags per second; read range up to 20+ feet

Durability: IP54 sealing; withstands multiple 5-foot drops

Ideal Use Cases:

The RFD40 Standard is ideal for retail environments, healthcare facilities, and light industrial settings where rapid inventory counts and asset tracking are essential. Its compatibility with Zebra mobile computers makes it a versatile tool for various applications.

Pros & Cons

The RFD40 Standard offers exceptional read speeds and durability, making it a reliable choice for many businesses. However, its reliance on a wired connection may limit mobility compared to wireless models.

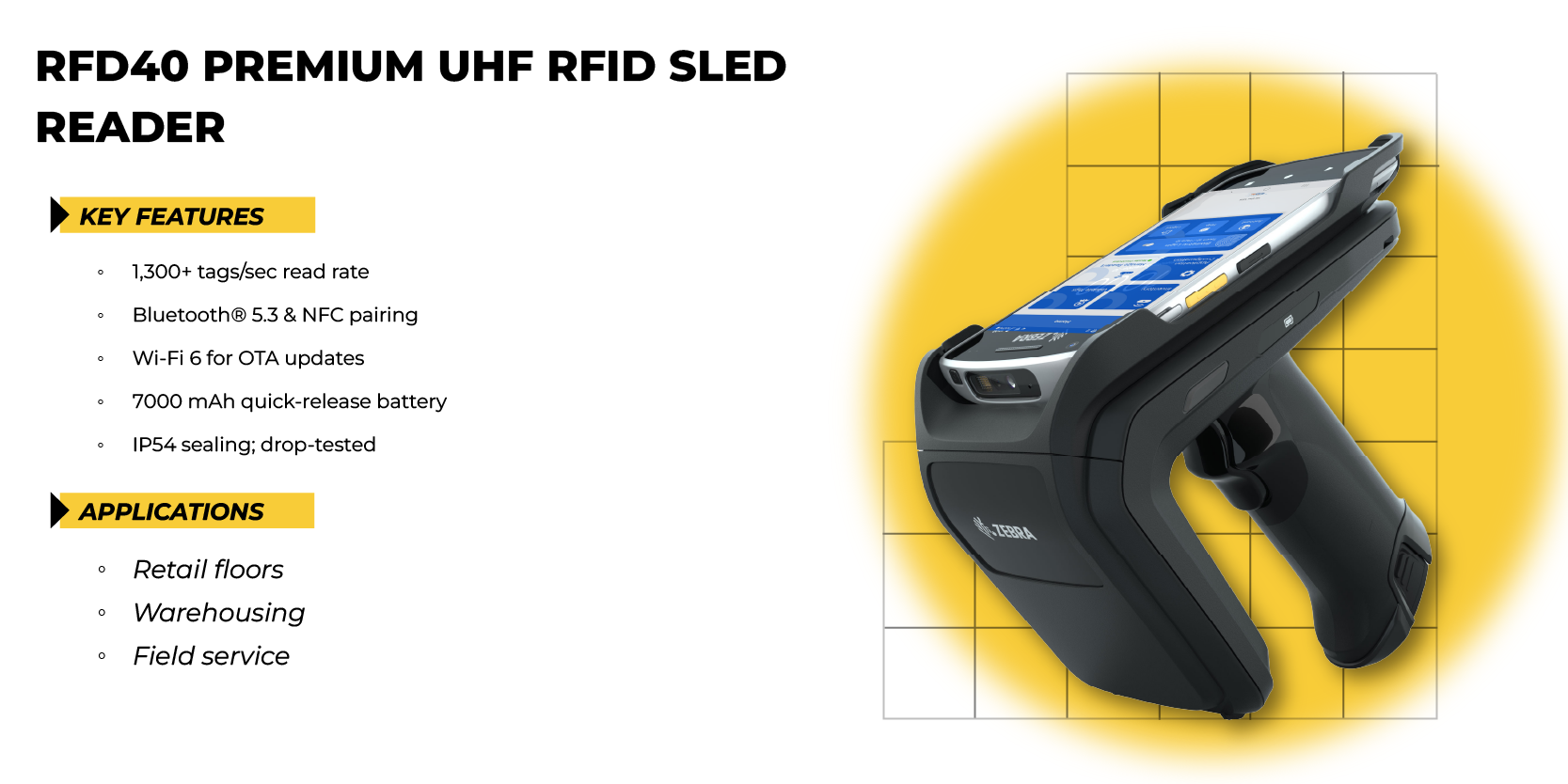

Zebra RFD40 Premium RFID Sled

Building upon the Standard model, the Zebra RFD40 Premium RFID Sled introduces wireless connectivity options, enhancing flexibility and ease of use in dynamic work environments.

Key Highlights

Wireless Connectivity: Features Bluetooth® 5.3 and NFC tap-to-pair for seamless device pairing.

Wi-Fi 6 Enabled: Allows for over-the-air (OTA) device management, simplifying updates and maintenance.

High-Speed Reading: Maintains a read rate of over 1,300 tags per second.

Ergonomic and Durable: Designed for comfort and built to withstand challenging conditions with IP54 sealing.

Specifications:

Dimensions: 5.94 in. H x 3.3 in. W x 6.5 in. L (151 mm x 84 mm x 165.65 mm)

Weight: Approximately 19.1 oz. (541 grams) with battery

Battery: Quick-release, PowerPrecision+ Li-Ion 7000 mAh

Connectivity: USB via eConnex™, Bluetooth® 5.3, Wi-Fi 6

RFID Performance: 1,300+ tags per second; read range up to 20+ feet

Durability: IP54 sealing; withstands multiple 5-foot drops

Ideal Use Cases:

The RFD40 Premium is well-suited for environments requiring greater mobility, such as large retail spaces, warehouses, and field operations. Its wireless capabilities allow for flexible data collection without being tethered to a specific location.

Pros & Cons:

With its advanced connectivity options, the RFD40 Premium enhances operational efficiency. However, the addition of wireless features may introduce complexities in device management for some users.

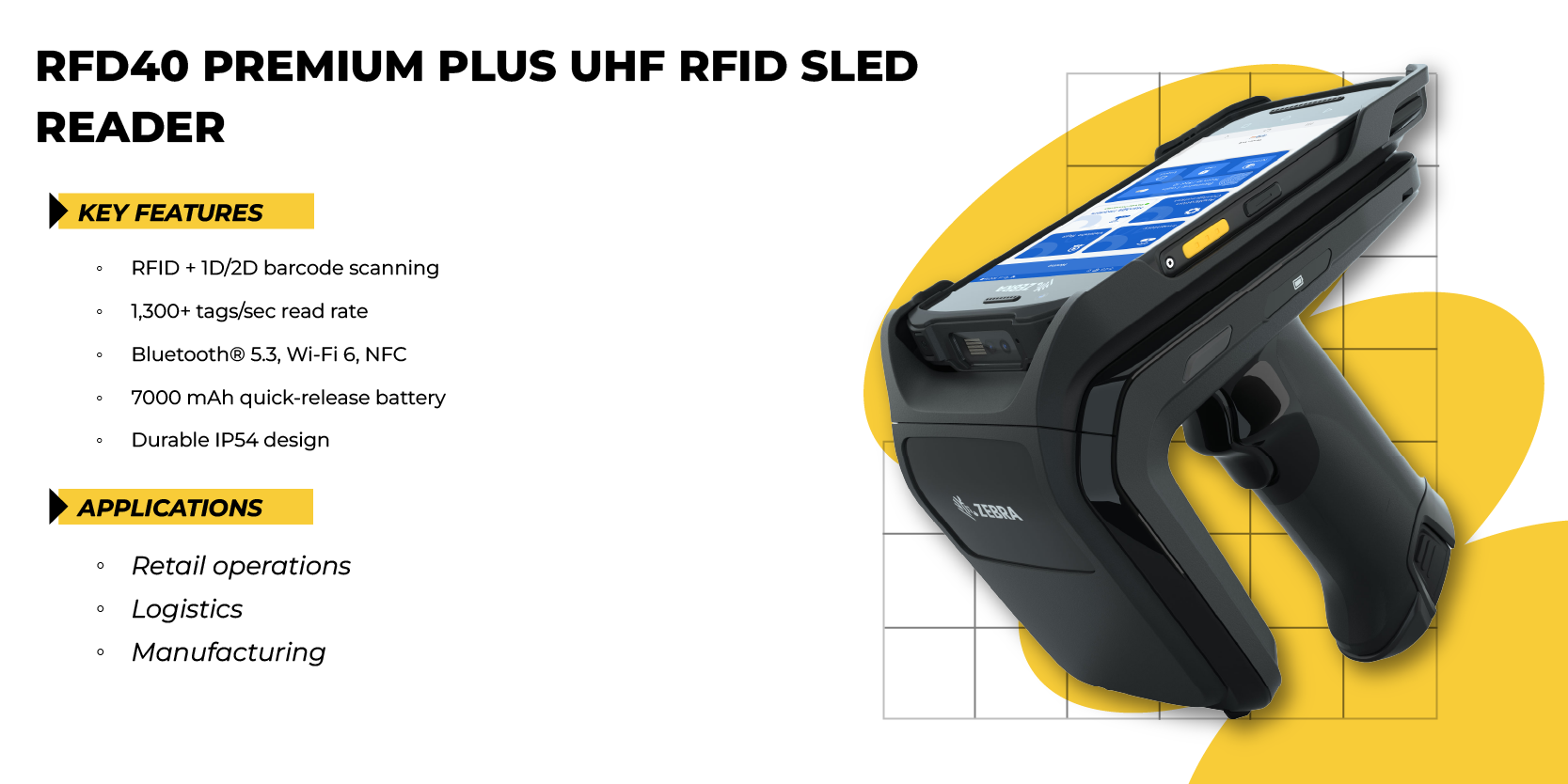

Zebra RFD40 Premium Plus RFID Sled

The Zebra RFD40 Premium Plus RFID Sled represents the pinnacle of the RFD40 series, combining RFID and barcode scanning capabilities with advanced connectivity options for comprehensive data collection solutions.

Key Highlights:

Integrated Barcode Scanner: Equipped with a built-in 1D/2D barcode imager for versatile scanning needs.

Advanced Connectivity: Offers Bluetooth® 5.3, Wi-Fi 6, NFC, and USB via eConnex™ for seamless integration.

Exceptional Performance: Maintains a read rate of over 1,300 tags per second with a read range up to 20+ feet.

Robust Design: Features IP54 sealing and withstands multiple 5-foot drops, ensuring durability in demanding environments.

Specifications:

Dimensions: 5.94 in. H x 3.3 in. W x 6.5 in. L (151 mm x 84 mm x 165.65 mm)

Weight: Approximately 19.6 oz. (556 grams) with battery

Battery: Quick-release, PowerPrecision+ Li-Ion 7000 mAh

Connectivity: USB via eConnex™, Bluetooth® 5.3, Wi-Fi 6, NFC

RFID Performance: 1,300+ tags per second; read range up to 20+ feet

Barcode Scanner: Integrated SE4100 1D/2D imager

Durability: IP54 sealing; withstands multiple 5-foot drops

Ideal Use Cases

The RFD40 Premium Plus is ideal for industries requiring both RFID and barcode scanning, such as retail, logistics, and manufacturing. Its comprehensive features support complex inventory management and asset tracking tasks.

Pros & Cons

The RFD40 Premium Plus offers unmatched versatility and performance among Zebra handheld RFID readers. While its advanced features provide significant benefits, they may come at a higher cost and require more extensive training for optimal use.

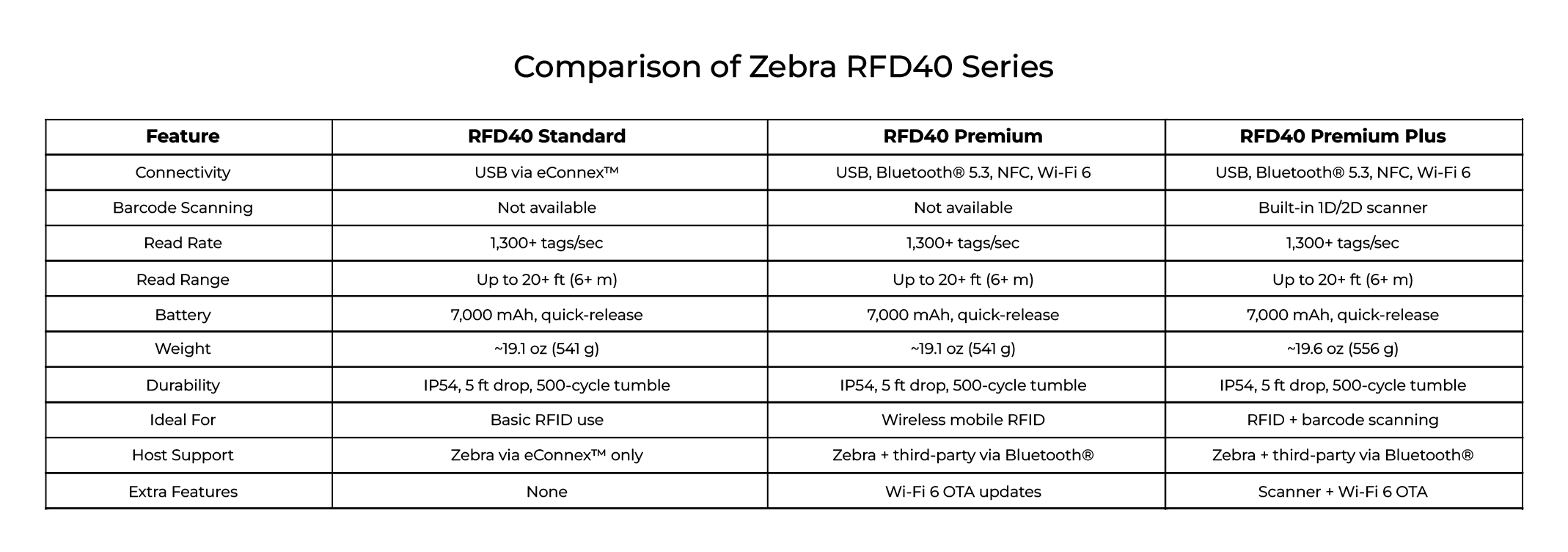

Differences between Zebra RFD40 RFID Sled models: Standard, Premium, and Premium Plus

Feature	RFD40 Standard	RFD40 Premium	RFD40 Premium Plus
Connectivity	USB via eConnex™	USB via eConnex™, Bluetooth® 5.3, NFC, Wi-Fi 6	USB via eConnex™, Bluetooth® 5.3, NFC, Wi-Fi 6
Barcode Scanning	Not available	Not available	Integrated 1D/2D barcode scanner
Read Rate	Over 1,300 tags per second	Over 1,300 tags per second	Over 1,300 tags per second
Read Range	Up to 20+ feet (6+ meters)	Up to 20+ feet (6+ meters)	Up to 20+ feet (6+ meters)
Battery	7,000 mAh Li-Ion, quick-release	7,000 mAh Li-Ion, quick-release	7,000 mAh Li-Ion, quick-release
Weight	Approximately 19.1 oz (541 grams)	Approximately 19.1 oz (541 grams)	Approximately 19.6 oz (556 grams)
Durability	IP54 rating; withstands 5-foot drops and 500-cycle 0.5-meter tumbles	IP54 rating; withstands 5-foot drops and 500-cycle 0.5-meter tumbles	IP54 rating; withstands 5-foot drops and 500-cycle 0.5-meter tumbles
Ideal For	Basic RFID applications with fixed host devices	Mobile RFID applications requiring wireless connectivity	Advanced applications needing both RFID and barcode scanning capabilities
Host Compatibility	Zebra mobile computers with eConnex™ (e.g., TC21/TC26, EC50/EC55)	Zebra mobile computers with eConnex™, third-party devices via Bluetooth®	Zebra mobile computers with eConnex™, third-party devices via Bluetooth®
Additional Features	None	Over-the-air (OTA) device management via Wi-Fi 6	Integrated barcode scanner, OTA device management via Wi-Fi 6

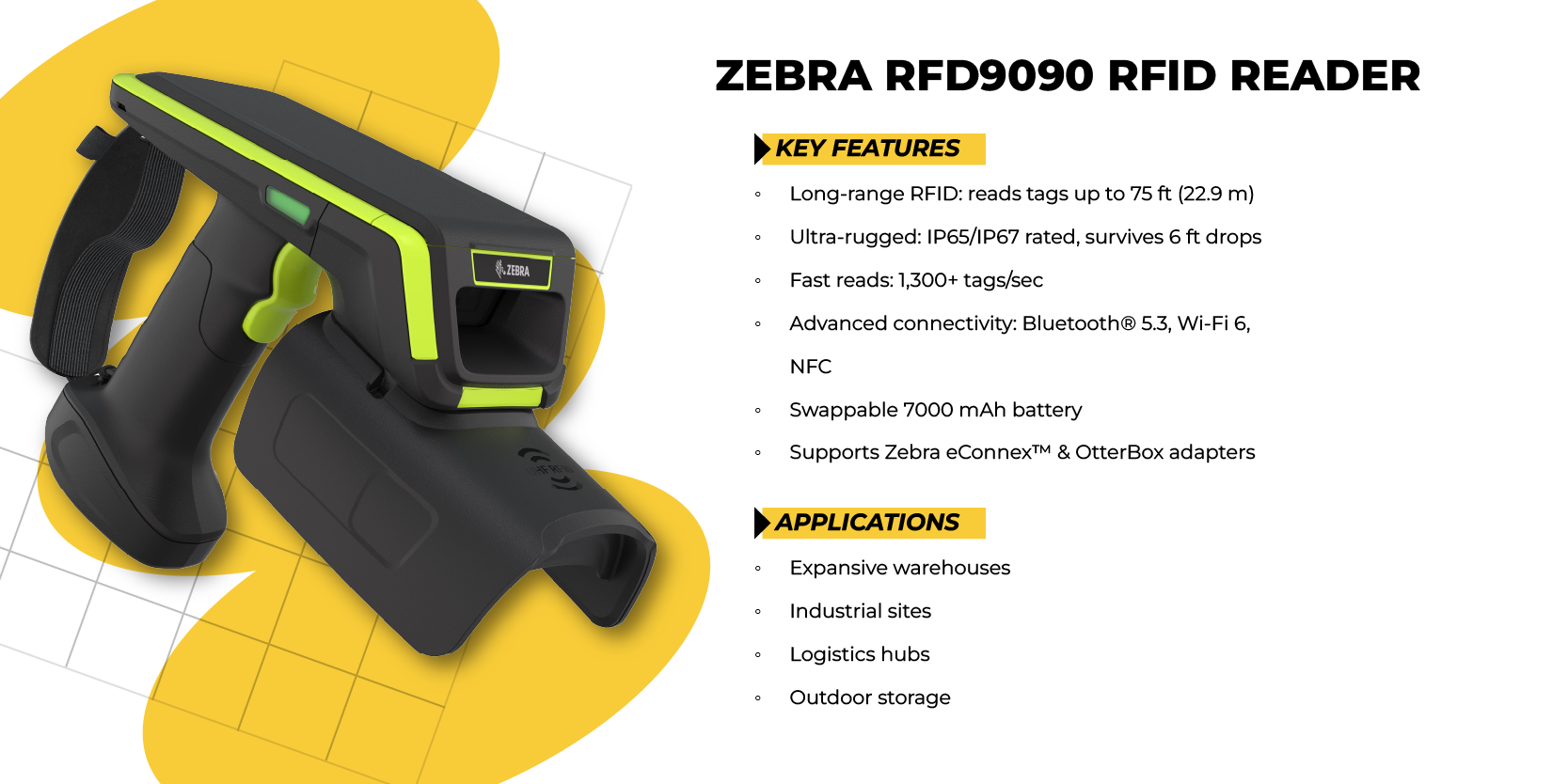

Zebra RFD9090 Long-Range Ultra-Rugged UHF RFID Sled

The Zebra RFD9090 is an ultra-rugged RFID sled designed for demanding industrial environments. With an extended read range of up to 75 feet (22.9 meters), it ensures rapid inventory counts and enhanced workflow accuracy, making it ideal for large-scale operations.

Key Highlights

Extended Read Range: Capable of reading RFID tags up to 75 feet (22.9 meters) away, suitable for expansive warehouses and outdoor environments.

Ultra-Rugged Design: Built to withstand harsh conditions with IP65/IP67 sealing and tested for multiple 6-foot drops onto concrete surfaces.

High Read Rate: Processes over 1,300 tags per second, facilitating swift inventory management.

Flexible Connectivity: Features Bluetooth® 5.3, Wi-Fi 6, and NFC tap-to-pair, ensuring seamless integration with various devices.

User-Friendly Trigger: Equipped with a tri-function, user-programmable trigger for efficient operation.

Specifications

Read Range: Up to 75 feet (22.9 meters).

Durability: IP65/IP67 rated; withstands 6-foot drops.

Battery: Quick-release 7,000 mAh Li-Ion battery.

Connectivity: Bluetooth® 5.3, Wi-Fi 6, NFC.

Compatibility: Supports Zebra eConnex™ adapters and OtterBox uniVERSE adapters for various mobile devices.

Ideal Use Cases

The RFD9090 is perfect for industries requiring long-range RFID reading capabilities, such as large warehouses, manufacturing plants, and logistics centers. Its robust design ensures reliable performance in challenging environments, including outdoor yards and cold storage facilities.

Pros & Cons

The RFD9090 offers exceptional read range and durability, making it a top choice for demanding applications. Its advanced connectivity options allow for versatile device integration. However, its extended capabilities may be more than necessary for smaller-scale operations, and its size might be bulkier compared to standard-range models.

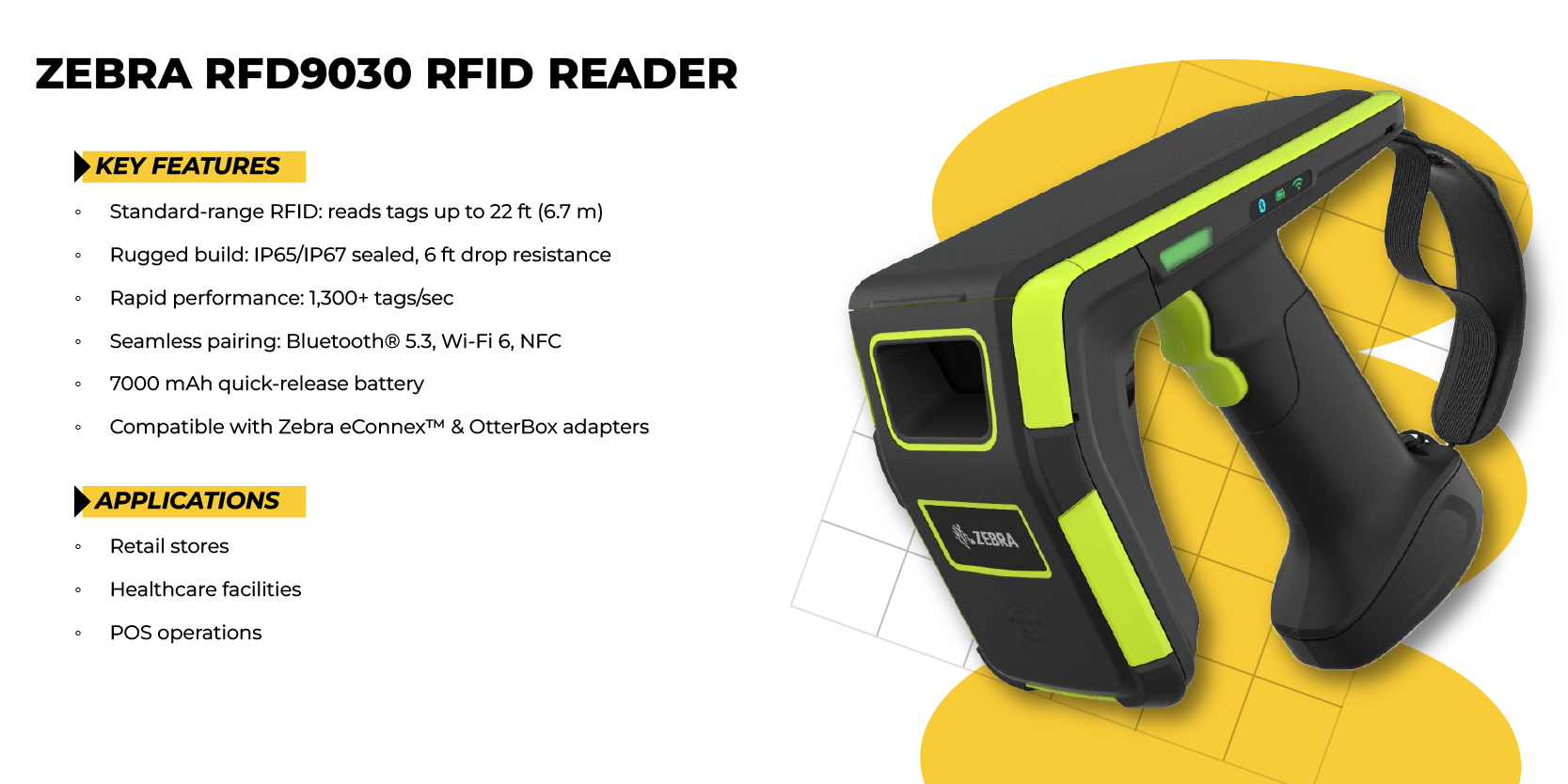

Zebra RFD9030 Standard-Range Ultra-Rugged UHF RFID Sled

The Zebra RFD9030 is a standard-range, ultra-rugged RFID sled designed for versatile applications. With a read range of up to 22 feet (6.7 meters), it delivers high-performance RFID reading in a compact and durable form factor.

Key Highlights

Standard Read Range: Reads RFID tags up to 22 feet (6.7 meters), suitable for various indoor applications.

Durable Construction: Features IP65/IP67 sealing and withstands multiple 6-foot drops, ensuring reliability in tough environments.

High Read Rate: Processes over 1,300 tags per second for efficient inventory tracking.

Versatile Connectivity: Equipped with Bluetooth® 5.3, Wi-Fi 6, and NFC tap-to-pair for seamless device integration.

Ergonomic Design: Designed for user comfort with a tri-function, user-programmable trigger.

Specifications

Read Range: Up to 22 feet (6.7 meters).

Durability: IP65/IP67 rated; withstands 6-foot drops.

Battery: Quick-release 7,000 mAh Li-Ion battery.

Connectivity: Bluetooth® 5.3, Wi-Fi 6, NFC.

Compatibility: Supports Zebra eConnex™ adapters and OtterBox uniVERSE adapters for various mobile devices.

Ideal Use Cases

The RFD9030 is ideal for retail, healthcare, and light industrial environments where standard-range RFID reading is sufficient. Its compact design and robust construction make it suitable for inventory management, asset tracking, and point-of-sale applications.

Pros & Cons

The RFD9030 combines durability with a manageable size, offering reliable performance in various settings. Its connectivity options enhance flexibility across different devices. However, its standard read range may not be adequate for applications requiring extended reach, and it lacks an integrated barcode scanner, which may necessitate additional equipment for certain tasks.

Both the RFD9090 and RFD9030 are part of Zebra's RFD90 series of handheld RFID readers, designed to meet diverse operational needs with their respective strengths in range and form factor.

Differences between the Zebra RFD9090 and Zebra RFD9030 RFID sled readers

Feature	Zebra RFD9090	Zebra RFD9030
Read Range	Up to 75 ft (22.9 m) – Long Range	Up to 22 ft (6.7 m) – Standard Range
Design	Larger, built for long-range performance	More compact and lightweight
Use Case Focus	Industrial, yard, warehouse environments	Retail, healthcare, light industrial
Durability	Ultra-rugged (IP65/IP67, 6 ft drop rating)	Ultra-rugged (IP65/IP67, 6 ft drop rating)
Tag Read Rate	1,300+ tags/sec	1,300+ tags/sec
Battery	7,000 mAh, quick-release	7,000 mAh, quick-release
Connectivity	Bluetooth® 5.3, Wi-Fi 6, NFC	Bluetooth® 5.3, Wi-Fi 6, NFC
Compatibility	Zebra eConnex™ & OtterBox uniVERSE adapters	Zebra eConnex™ & OtterBox uniVERSE adapters
Best For	Long-range scanning in harsh environments	General RFID use in moderate environments
Barcode Scanning	Not integrated	Not integrated
Size & Weight	Larger and heavier	Smaller and lighter
Cost	Higher (premium, long-range model)	Lower (standard-range option)

Choosing the Right Zebra RFID Handheld for Your Business

Choosing the right Zebra handheld RFID reader depends on your environment, workflow, and range requirements. Whether you need long-range performance for warehouses or sleek, retail-friendly models, Zebra offers scalable solutions tailored for inventory accuracy, durability, and seamless integration with your existing systems.

Final Thoughts

Each business has unique operational demands. Whether you need mid-range RFID reading for retail or ultra-rugged long-range performance for industrial logistics, Zebra’s handheld RFID portfolio has a tailored solution. Balancing form factor, read range, and connectivity is key to maximizing ROI.
