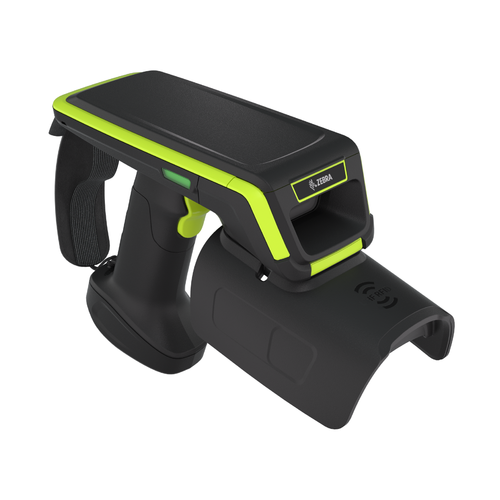

Zebra RFD9090 Long-Range Ultra-Rugged UHF RFID Sled

Write a Review


Zebra’s RFD90 Ultra-Rugged UHF RFID

The Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are built for harsh conditions, tested for 6-foot (1.8-meter) drops to concrete and sealed to industrial-grade dual IP65 and IP67 ratings. Both the standard-range RFD9030 Sled and long-range RFD9090 Sled provide industry-leading read rates of 1,300 tags per second, an ultra-accurate item-finder mode, a tri-function user-programmable trigger and Wi-Fi 6 capability for easy device management. Changeable eConnex™ adaptors and charging cradles support rugged Zebra mobile computers, while integrated Bluetooth® 5.3 connectivity supports third-party smartphones.

Features & Benefits:

Industry-Leading Performance -

With a robust read rate of 1,300 tags per second, RFD90 Sleds enable rapid inventory counts and increase workflow accuracy. The RFD9030 Sled offers an extended range of 75 feet (22.9 meters),  And with a 7,000 mAh battery, RFD90 Sleds keep going hour after hour.

Flexible Connectivity -

RFD90 Sleds are compatible with almost any mobile device. Zebra eConnex™ adaptors allow you to mount a broad selection of rugged Zebra mobile computers, while the OtterBox uniVERSE adaptor provides support for many third-party smartphones. Integrated Bluetooth® 5.3 wireless capability connects to almost any Android™, iOS or Windows device.

Ultra-Rugged Ergonomic Design -

Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are engineered to withstand everyday use across a wide variety of harsh conditions, including manufacturing, transportation, and logistics environments. These ultra-rugged sleds are dust-proof, spray-proof, waterproof and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces.

Flexible and Future-Proof Charging -

Charging solutions for RFD90 Sleds provide users a flexible way to power up the sled and mobile computer in a variety of ways. Featuring two sets of charging pins, each cradle cup can charge an RFD90 Sled by itself, the mobile computer by itself, or a combination of RFD90 Sled and mobile computer when attached together. A universal cradle cup provides charging for the sled and has a USB-A port to plug in a charging cable for third-party devices.

What is included?

  • Zebra RFD90 Long-range Ultra-Rugged UHF RFID Sled Unit
  • Battery
  • Quick Start Guide
  • One Year Standard Manufacturer Warranty

What Zebra mobile computers are compatible with the RFD9090 Sled?

The sleds can connect instantly to supported Zebra eConnex™-enabled devices including the Zebra's TC21, TC26, TC5x,TC7x mobile computers., and future models.

How Can RFD9090 Sled be connected to the mobile computer?

The RFD9090 Sled can be connected to the mobile computer using the eConnex™ Adapter or OtterBox uniVERSE or Integrated Bluetooth® 5.3.

What is the maximum read range of the RFD9090 Sled?

The maximum read range of the RFD9090 Sled varies depending on the RFID frequency being used, the size of the tag being read, and other environmental factors. However, the extended range is 75 feet (22.9 meters)

What types of barcodes can the RFD9090 Sled read?

The RFD9090 Sled can read a wide range of barcode types, including 1D barcodes (such as UPC, EAN, and Code 39) and 2D barcodes (such as QR codes and Data Matrix).

What is the difference between RFD9030 and RFD9090?

The main difference between the TRFD9030 and the RFD9090 is, the RFD9030 Sled offers a standard read range of up to 22 feet (6.7 meters), while the RFD9090 Sled features an extended range of up to 75 feet (22.9 meters), but the read range of both the Reader depends on several factors, including the type of RFID tag being used, the power settings of the device, and the environment in which it is being used.

View AllClose

Additional Information

ISO 18000-63 and EPCglobal Gen2v2
865-868 MHz (ETSI)
0-30 dBm (EIRP)
PowerPrecision Li-Ion batteries, 7000 mAh
Barcode and RFID
9.8 x 3.8 x 6.8 in./248 x 96.3 x 173 mm
RFD9090 with SE4750MR: 26.8 oz./759 grams RFD9090 with SE4850: 28.2 oz./799 grams
-4°F to 131°F/-20°C to 55°C
12 months standard warranty
Charging cradle
Adapter mount, charging cradle
download data sheet:
