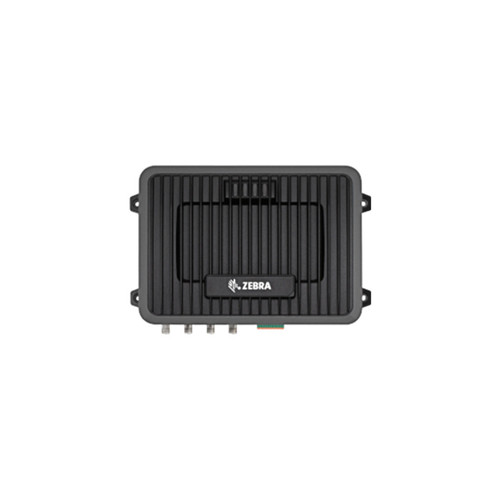

Zebra FX9600 RFID Reader - 4 ports

Zebra FX9600 RFID Reader-

Zebra FX9600 RFID Reader - 4 ports delivers industry-best performance for high-volume, rugged environments. With support for PoE and PoE+, an IP 53 sealed housing rating, and eight RF antenna ports, the Zebra FX9600 brings a new level of capability to asset tracking and inventory management applications.

The rugged mobile mount brings the benefits of RFID to forklifts, other warehouse material handling vehicles, as well as other rugged environments where vehicles do not have rubber inflatable wheels. By installing the FX9600 on a forklift, drivers can ensure that the right item is going to the right place — and that the right items are picked for the right order.

Features & Benefits:

• High RF sensitivity for superior performance and efficiency
• Easy, low-cost deployment with support for PoE and PoE+
• Directly connect to Wi-Fi™ networks and Bluetooth®-enabled devices
• Rugged mobile mount for use in forklifts and more
• Rugged design for tough environments
• More read points per reader

What are some typical use cases for the Zebra FX9600 reader?

The Zebra FX9600 reader is commonly used in various industries including.

Warehousing

• Inventory management

Transportation and Logistics

• High-volume traffic
• RFID-tagged pallets and cases

Manufacturing

• Asset tracking

Retail

• Item-level tagging
• Pickup and delivery confirmation

Ordering Options:

• FX9600-42320A50-US - Zebra FX9600 Fixed RFID Reader - 4 Antenna Ports
• FX9600-82320A50-US - Zebra FX9600 Fixed RFID Reader - 8 Antenna Ports

Accessories Options:

• PWR-BGA24V78W1WW - Zebra Power Supply for Fixed Readers
• 23844-00-00R - Zebra AC Line Cord (US)
• KT-FX96-PWRS-9-60VDC- DC Power Supply for FX9600
• BRKT-FX96-SVMP-01 -FX9600 Forklift Mounting Bracket

Zebra OneCare Service Options:

• Z1A1-FX9600-3C00 - 1 YEAR(S) ZEBRA ONECARE NEXT BUSINESS DAY ONSITE (US AND UK ONLY)FOR FX9600, PURCHASED WITHIN 30 DAYS, WITH COMPREHENSIVE COVERAGE.
• Z1AS-FX9600-3C03 - 3 YEAR(S) ZEBRA ONECARE SELECT, ADVANCED REPLACEMENT, FOR FX9600, PURCHASED WITHIN 30 DAYS, WITH COMPREHENSIVE COVERAGE. INCLUDES COMMISSIONING

What is included in the box?

• Zebra FX9600 RFID Reader Unit
• Power Supply if selected from the Accessories Option

Note: -Power supply not required for use with POE enabled switch.

Power Supply PWR-BGA24V78W1WW and Line Cord 23844-00-00R will require for using the Reader without POE

What types of connectivity options are available with the Zebra FX9600 Reader?

The Zebra FX9600 Reader has several connectivity options, including 10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)

What is the frequency range of the Zebra FX9600 reader?

The Zebra FX9600 reader operates at a frequency range of 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz
US (only) Reader: 902 - 928 MHz depending on the region.

What is the maximum read rate of the Zebra FX9600 Reader?

The Zebra FX9600 Reader can achieve a maximum read rate of up to 1200 tags per second.

Can the Zebra FX9600 reader be used with multiple antennas?

Yes, the Zebra FX9600 reader is available in two Configuration FX9600 4-Port and FX9600 8-Port, allowing for greater coverage and flexibility.

Does the Zebra FX9600 Reader support Power over Ethernet (PoE)?

Yes, the Zebra FX9600 Reader supports PoE.

What is the warranty period for the Zebra FX9600 RFID Reader?

The Zebra FX9600 RFID Reader comes with a standard warranty period of one year, which can be extended with a Zebra OneCare service contract.

What are the main differences between the Zebra FX7500 and FX9600 RFID readers?

• The FX9600 has a wider range of connectivity options, including 10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)and 4 inputs, 4 outputs, optically isolated (Terminal Block) GPIO.On the other hand, The FX7500 has connectivity options of 10/100 BaseT Ethernet (RJ45) w/ POE support; USB Client (USB Type B)*, USB Host Port (Type A)* and 2 inputs, 3 outputs, optically isolated (Terminal Block) GPIO.

• The FX9600 comes in two versions with 4-antenna ports and 8-antenna ports, while the FX7500 comes in two versions with 2-antenna ports and 4-antenna ports.

What is a Fixed RFID Reader?

A Fixed RFID Reader is a device that uses radio waves to capture data from RFID tags. It is typically installed in a fixed location, such as a doorway or a dock, and is used for automatic identification and tracking of tagged items.

How do Fixed RFID readers work?

Fixed RFID readers emit radio waves through antennas to read and capture data from RFID tags. When an RFID tag passes within the read range of the reader, it detects the tag and collects the data stored on it, such as a unique identifier or product information.

How do Fixed RFID readers communicate with RFID tags?

Fixed RFID readers communicate with RFID tags using radio waves. The reader emits a signal through its antennas, and when an RFID tag enters the reader's field, it absorbs the energy from the signal and uses it to transmit data back to the reader.

What is the Zebra FX9600 Fixed RFID Reader?

The Zebra FX9600 Fixed RFID Reader is a high-performance RFID reader designed for industrial and enterprise environments. It supports up to 4 antenna ports and is known for its reliability and scalability.

How many antennas does the Zebra FX9600 RFID Reader support?

The Zebra FX9600 RFID Reader supports 4 antenna ports.

What are the key features of the Zebra FX9600?

Key features of the Zebra FX9600 include high read accuracy, long read range, support for multiple antennas, rugged design for industrial use, and easy integration with existing systems.

What is the power source of the Zebra FX9600 Fixed RFID reader?

The Zebra FX9600 Fixed RFID reader is powered via Power over Ethernet (PoE), which provides both power and data connectivity over a single Ethernet cable.

What are the benefits of using the Zebra FX9600 in RFID applications?

Using the Zebra FX9600 in RFID applications provides benefits such as improved asset visibility, enhanced inventory management, reduced operational costs, and increased efficiency in supply chain and logistics operations.

Can the Zebra FX9600 RFID Reader be integrated with existing enterprise systems?

Yes, the Zebra FX9600 RFID Reader can be easily integrated with existing enterprise systems, including warehouse management systems (WMS), inventory tracking software, and ERP systems, to streamline operations and improve data accuracy.

What industries can benefit from the Zebra FX9600 Fixed RFID Reader?

Industries that can benefit from the Zebra FX9600 Fixed RFID Reader include retail, manufacturing, healthcare, logistics, and automotive sectors, where accurate and efficient asset tracking and inventory management are critical.
