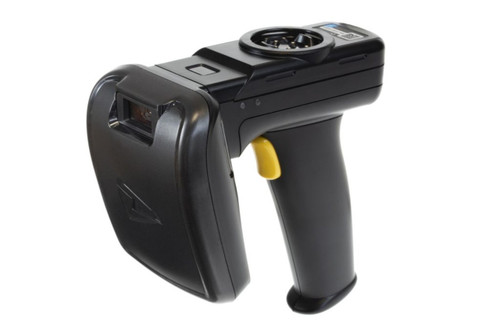

TSL 2128P Bluetooth UHF RFID Reader

Write a Review
SKU:
2128P
  • TSL 2128P Bluetooth UHF RFID Reader (2128P)
  • TSL 2128P Bluetooth UHF RFID Reader (2128P)
  • TSL 2128P Bluetooth UHF RFID Reader (2128P)
  • TSL 2128P Bluetooth UHF RFID Reader (2128P)
  • TSL 2128P Bluetooth UHF RFID Reader (2128P)
₹160,714

Description

2128P UHF RFID Reader-

The 2128P UHF RFID Reader introduces the revolutionary, patented TSL® ePop-Loq® connector. The ePop-Loq® system allows data and charge connections to be passed from the reader to an attached device, such as a smartphone or handheld terminal.  The unique ePop-Loq® system is also designed to safely separate when the reader is subject to large impacts, such as when dropped.

ePop-Loq® is TSL’s latest and most fully featured device mounting system. A direct, wired USB connection is provided between the RFID Reader and mounted device*. A Bluetooth® wireless connection can still be used if preferred.

Features & Benefits:

Single Point Charge Solution - The 2128P Docking Station allows charging of both the 2128P UHF RFID Reader and a smartphone or handheld terminal attached via an ePop-Loq® mount.

Flexible Bluetooth® Connectivity - The 2128P supports both Bluetooth® Classic as well as Bluetooth® Low Energy (BLE). The reader can be operated in Serial Port Profile (SPP) or Human Interface Device mode (HID), as well as supporting iApp2 for Apple iOS devices. The reader also supports an automatic re-connect mode for both Android and Apple devices.

Ultra Secure Data Gathering Option – As the ePop-Loq® system provides a wired connection between the host device and RFID Reader, sensitive data can be given that extra level of security by avoiding the use of wireless data transfer. The 2128P supports batch data collection and is equipped with a Micro SD socket and a real time clock. Up to 500 million transponder EPCs can be stored on a 32GB Micro SD card (optional purchase).

Hardware Platform Independence - Operates with wide variety of Bluetooth® wireless technology enabled host devices from smartphones to tablets, laptops and desktop computers

OS Independence - The reader is compatible with Android, Mac, iOS and Windows.

Integrated ePop-Loq® Socket - A smarter way of mounting devices to the UHF RFID reader.

Bluetooth LE Support - Lower power consumption and longer battery life.

Direct USB Connection - For increased security of data transfer via ePop-Loq® mounts.

Comparison of TSL UHF RFID Readers:

TSL 1153 1128 2128 2128P 2128L 1166
Read Range Up to 2 m (6.5 ft) Up to 5.5 m (18 ft) Up to 6 m (19.6 ft) Up to 9 m (29.5 ft) Up to 15 m (49 ft)* Up to 9 m (29.5 ft)
Maximum RF Output Power Up to 26 dBm EIRP Up to 32 dBm EIRP Up to 33 dBm EIRP Up to 34 dBm EIRP Up to 35 dBm EIRP Up to 34 dBm EIRP
IP Rating IP54 IP54 IP54 IP54 IP54 IP67
Bluetooth® version Bluetooth® 2.1 Bluetooth® 2.1 Bluetooth® 4.2 Bluetooth® 4.2 Bluetooth® 4.2 Bluetooth® 2.1
Apple Mfi certified Yes Yes Yes Yes Yes Yes
Optional 2D barcode Yes Yes No Yes No Yes
Internal Storage Up to 32 GB* Up to 32 GB* Up to 32 GB* Up to 32 GB* 16 GB* 16 GB*
No. of tags that can be Store Up to 500 million tags Up to 500 million tags Up to 500 million tags Up to 500 million tags Up to 250 million tags Up to 250 million tags
Drop Spec 1.2 m* 1.2 m* 1.2 m* 1.2 m* 1.2 m* 1.8 m*
Mounting Options Wearable Slide-on Mounts* ePop-Loq® Mounts ePop-Loq® Mounts ePop-Loq® Mounts Pop-Loq® Mounts

Ordering Options:

  • 2128P-ES1-IN - 2128P Bluetooth® UHF Reader with 2D Imager, UHF Antenna, Trigger Handle, Battery, ETSI frequency
  • 2128P-EX1-IN - 2128P Bluetooth® RFID Reader with UHF Antenna (No Imager), Trigger Handle, Battery, ETSI frequency

Accessories Options:

  • TSL Docking Cradle for 2128 and 2128P UHF RFID Readers
  • Spare Battery for the 1128/2128 UHF RFID Reader
  • Belt Holster for 1128/2128 with Trigger Handle
  • 2128 / 2128P Power Handle
  • TSL Slimline Grip Attachment for 1128 RFID Reader

What is included in the Box?

  • TSL 2128P UHF RFID Reader Main Body and Trigger Handle
  • Battery

 What is the Standard warranty for the TSL 2128P Reader?

The TSL® 2128P reader is warranted against manufacturing defects for a period of one year (12 months) from the date of shipment.

What operating systems are compatible with the TSL 2128P Reader?

The TSL 2128P Reader is compatible with a wide range of operating systems, including Android, iOS, Windows, and macOS.

View AllClose

Additional Information

AIR PROTOCOL:
ISO 18000-63 and EPCglobal Gen2v2
FREQUENCY:
865-868 MHz (ETSI)
MAXIMUM OUTPUT POWER:
34 dBm EIRP
COMMUNICATIONS:
USB, Bluetooth
COMPATIBLE BLUETOOTH HOST DEVICES:
Any Bluetooth® Host1 supporting the Serial Port Profile (SPP) or Human Interface Device (HID) profile (Android, iOS, Linux, Mac, Windows)
COMPATIBLE USB HOST DEVICES:
Any USB host with FTDI VCP driver support (Windows, Linux, Mac, Android)
OPERATING TEMPERATURE:
-10°C to 50°C (14°F to 122°F)
DIMENSIONS:
158 x 98 x 170 mm (LxWxH) (6.2 x 3.9 x 6.7")
WEIGHT:
445 g (15.7 oz)(including Trigger Handle & battery) 507 g (17.9 oz)(including Power Handle & battery)
download data sheet:
https://rfid4ustore.in/content/2128P%20Handheld%20Reader.pdf
