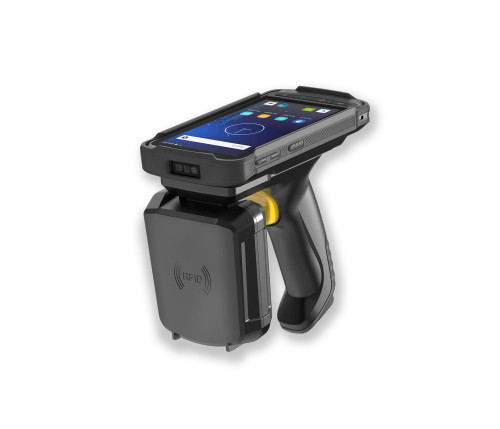

Name: Newland MT90 with UR90 Pistol Grip UHF RFID Handheld Reader
Brand: Newland
SKU: NLS-MT90
Availability: OutOfStock

Description
Additional Information

Description

The Newland NLS-MT90 Mobile Terminal sets a new standard in versatility and reliability, featuring a vibrant 5-inch multi-color capacitive touch screen with tempered glass and IPS display. Its design ensures excellent visibility and legibility, making it suitable for both indoor and outdoor environments. Beyond its dual SIM card system, this terminal offers a comprehensive range of functionalities including Bluetooth, 1D and 2D barcode scanning, Wi-Fi, 4G, 3G, GPS, camera, and NFC capabilities, catering to diverse application needs with ease. Built to endure demanding conditions, its rugged housing is sealed to IP65 standards, providing protection against dust and water, while also boasting the ability to withstand drops of up to 1.5 meters onto concrete surfaces.

Features

5” Multi-color Capacitive Touch Screen
Diverse Functionalities
Industrial-grade Durability
Superior Barcode Reading Performance

Frequently Asked Questions about the Newland MT90 Mobile Terminal UHF RFID Handheld Reader

What is the UHF Handheld RFID Reader?

A UHF Handheld RFID Reader is a portable device that uses radio-frequency waves to identify and track tags attached to objects. It's commonly used for asset tracking, inventory tracking, and other applications where mobility is required.

What is the Newland MT90 Mobile Terminal?

The Newland MT90 Mobile Terminal is a UHF RFID handheld reader designed for efficient and accurate data collection. It integrates UHF RFID technology with barcode scanning capabilities in a rugged and ergonomic device.

What are the key features of the Newland MT90?

Key features of the Newland MT90 include:

UHF RFID reading capability
Barcode scanning functionality
Android operating system
Rugged design for durability
Long battery life
Wireless connectivity options (Wi-Fi, Bluetooth)
Large touch screen display

What are the typical applications of the Newland MT90?

The Newland MT90 is used in various applications, such as:

Inventory tracking
Asset tracking
Retail management
Warehouse operations
Logistics and supply chain management

What are the connectivity options available with the Newland MT90?

The Newland MT90 supports several connectivity options:

Wi-Fi
Bluetooth
4G LTE (optional)
USB

How is the Newland MT90 powered?

The Newland MT90 is powered by a high-capacity rechargeable battery, ensuring long hours of operation in the field.

What is the read range of the Newland MT90?

The read range of the Newland MT90 varies depending on the RFID tags and environmental conditions, typically up to several meters.

Is the Newland MT90 easy to use and configure?

Yes, the Newland MT90 is designed to be user-friendly, with an intuitive interface and easy configuration options.

What is the price of the Newland MT90 device?

For pricing information, you can contact our sales team.

View AllClose

Additional Information

Protocol Supported:	EPC Class 1 Gen 2 (ISO 18000-6C)
Frequency Range:	ETSI: 865 - 868 MHz
UHF RFID Read Range:	>12M (Indoor); >6M (Outdoor open space) (@ Alien 9662) (Read range can be affected by tag and environment)
Read Rate:	≥150 tags/sec
Antenna:	Circularly polarized antenna (3dB)
Processor:	2.0GHz, octa-core 64-bit processor
Operating System:	Android 11
Memory:	4GB RAM, 64GB ROM
Interface:	Micro USB 2.0 OTG at the bottom, 8Pin extended contact on the back
Dimensions:	Maximum Size: 155 × 78 × 20mm; Handheld Size: 155 × 76 × 18mm
Display:	5” (1280×720) capacitive touch screen
Notification:	Vibrator, speaker and multi-color LEDs
Battery:	3.8V, 4500mAh
Camera:	Front camera (optional): 2 megapixels Rear camera: 8 megapixels, auto focus, with LED flashlight
Operating Temperature:	-20℃ to 55℃ (-4°F to 131°F)
Storage Temperature:	-40℃ to 70℃ (-40°F to 158°F)
Drop:	1.5m drops to concrete (for six sides, one drop per side)
Sealing:	IP65
download data sheet:	https://rfid4ustore.in/content/NLS-MT90%20RFID%20Datasheet.pdf
