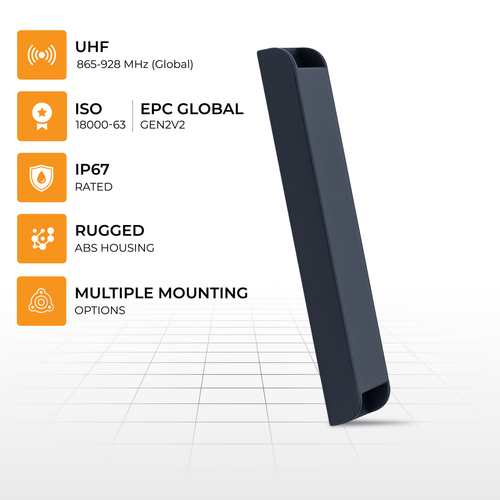

TronRFID UHF RFID NexTag (112 x 20 mm)
TronRFID UHF RFID NexTag 112x20 mm is a passive UHF Gen2 tag designed for long-range applications. It offers versatile use across various materials like plastic, metal, and wood, with easy attachment via rivets, adhesives, or magnets. These tags are ideal for assets in harsh environments, resisting vibration, shock, chemical exposure, and temperature fluctuations. They are widely used in factories, warehouses, and automobiles for inventory management, with their extended reading range enhancing their suitability for diverse applications.
Applications
▪ Warehouse Management
▪ Retail Management
▪ Asset Tracking
Personalisation Options
▪ Pre-encoding: Customer-specific encoding of EPC memory.
▪ Customized Laser Engraving: Customer-specific artwork, including logo & text, numbers, barcodes, etc.
FAQs
What is the TronRFID UHF RFID NexTag used for?
The NexTag is designed for long-range RFID applications such as warehouse management, retail management, and asset tracking. It works effectively on various materials like metal, plastic, and wood.
How durable is the NexTag in harsh environments?
The tag is built with a rugged ABS housing and IP67 rating, making it resistant to vibration, shock, chemicals, and extreme temperatures (-40°C to +85°C).
What is the read range of this RFID tag?
The TronRFID NexTag offers an extended read range of up to 14 meters, depending on the reader and environment.
How can the NexTag be attached to assets?
The tag supports multiple attachment options, including screws, rivets, adhesives, and magnets for flexible installation.
Can the NexTag be personalized?
Yes, it supports pre-encoding of EPC memory and custom laser engraving with logos, serial numbers, barcodes, or text.
What is the size of the TronRFID NexTag?
The tag dimensions are 112 × 20 × 14 mm (±0.5 mm), making it compact and suitable for a wide range of industrial and retail applications.
Additional Information
Operational Frequency (Global): |
865-928 MHz |
Interface Protocol: |
ISO 18000-63 and EPC global Gen2v2 |
Chip Type: |
Impinj Monza R6P |
Memory Configuration: |
EPC Memory – 128 bits /96 bits, USER Memory – 0 / 32 bits |
Data Retention: |
50 Years |
Write Cycle Endurance: |
100,000 cycles |
Read Range: |
Up to 14 meter |
Storage Temperature: |
-40 to +85°C |
IP Rating: |
IP67 |
Tag Size: |
(112×20×14 mm) +- 0.5 mm / 4.40×0.78×0.55 in |
Download Data Sheet: |
https://rfid4ustore.in/content/TronRFID%20UHF%20RFID%20NexTag%20112x20%20mm.pdf |
