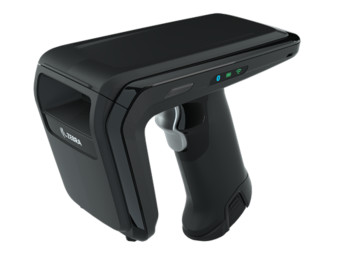

Zebra RFD40 Premium RFID Sled

RFD40 Premium RFID Sled

Your business is being challenged to work faster and more efficiently than ever before. Gain the edge and efficiency you need with the RFD40 UHF RFID Premium and Premium Plus Sled. Connect to current and future Zebra mobile computers directly through eConnex™ adaptors, or wirelessly with Bluetooth® 5.3 capability. Industry-first Wi-Fi 6 enables easy over-the-air (OTA) device management.* Decrease cycle-counting time with an industry-best 1,300+ tag reads per second, optimized read range, tri-function programmable trigger and increased battery capacity, along with the durable drop specs, optimal battery performance and superior ergonomic design you expect from Zebra.

Features & Benefits:

Next Generation Connectivity - Connect to current and future Zebra mobile computers directly through eConnex™ adaptors, or wirelessly with Bluetooth® 5.3 capability. Industry-first Wi-Fi™ 6 enables easy over-the-air (OTA) device management.

Unparalleled Efficiency - The RFD40 UHF RFID Premium outperform the competition with 1,300+ tag reads per second (up to 30% faster than the next leading competitor), a 20+ foot read range, and ultra-accurate item-finder mode. With a 7,000 mAh battery and a quick-release function that’s accessible without removing the mobile computer, it keeps going hour after hour.

Adaptive Solutions - RFD40 Premium Sleds is fully enabled to support Zebra’s current mobile computers and smartphones, as well as new mobile computers and third-party smartphones as they come out.

Durability You Can Depend On - Zebra devices have the ability to withstand everyday environments. RFD40 Sleds have a five-foot drop-to-concrete specification and a five hundred cycle 0.5 meter/1.6-foot tumble specification to replicate real-world knocks and bumps. They have IP54 sealing for dust and water protection.

Innovative New Cradle Solutions - Cradles that support RFD40 Premium Sleds come in both one-slot and multi-slot options, as well as charge-only and communication variants. For communication support, the one-slot communication cradles have a Micro-USB port for connection to a host PC, while the multi-slot cradles possess an Ethernet port for connection to a corporate network.

The Key Product Features of RFD40 Premium and RFD40 Premium Plus

Ordering Options:

• RFD4031-G00B700 - Zebra EVM RFID40, premium, standard range circular polarized antenna, UHF RFID, Bluetooth, Wi-Fi, gun, no imager, 7000mah battery, midnight black.

Accessory Options

Device Mounts

• ADP-RFD40-BT-1R- RFD40 Sled Bluetooth Adaptor for OtterBox uniVERSE Cases
• ADP-RFD40-TC2X-1E- RFD40 Sled eConnex Adaptor for TC21/26
• ADP-RFD40-EC5X-1E- RFD40 Sled eConnex Adaptor for EC50/55
• ADP-RFD40-TC5X-2E- RFD40 Sled eConnex Adaptor for TC53/58
• ADP-RFD40-TC5X-0E- Zebra RFD40 eConnex™ Adapter for TC52ax with SE55 scan engine
• ADP-RFD40-TC5X-1E- Zebra RFD40 eConnex™ Adapter for TC52ax with SE4720 scan engine

Charging Cradles:

Please note that the charging cradles require one power supply, one AC cord and one DC cord to operate. To purchase together, please select the charging cradle kit option:

Single Slot Cradles:

• CRD1S0T-RFD49-UNIV-CHG-1R- RFD40, 1 Slots, Charge Only Cradle with support for Universal/3rd Party
• CRD1S0T-RFD40-TC2X-CHG-1R - RFD40, 1 Slot, Charge Only Cradle with support for TC21/26
• CR40-1S0T-TC5-G-01 - RFD40, 1 Slot, Charge Only Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD1S0T-RFD40-EC5X-CHG-1R - RFD40, 1 Slot, Charge Only Cradle with support for EC50/55
• CR40-1S0T-TC5-M-01 - RFD40, 1 Slot, Communication Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD1S0T-RFD40-EC5X-COM-1R - RFD40, 1 Slot, Communication Cradle with support for EC50/55
• CRD1S0T-RFD49-UNIV-COM-1R- RFD40, 1 Slots, Communication Cradle with support for Universal/3rd Party.

Required Accessories for Single slot Charging Cradles:

• PWR-BGA12V50W0WW - Power Supply
• CBL-DC-388A1-01 - DC Line Cord
• 23844-00-00R - AC Line Cord

Multi Slot Cradles:

• CRD3S4T-RFD40-TC2X-CHG-1R - RFD40, 3 Slots, Charge Only Cradle with support for TC21/26
• CRD3S4T-RFD49-UNIV-CHG-1R- RFD40, 3 Slots, Charge Only Cradle with support for Universal/3rd Party.
• CRD3S4T-RFD40-EC5X-CHG-1R - RFD40, 3 Slots, Charge Only Cradle with support for EC50/55
• CR40-3S4T-TC5-G-01 - RFD40, 3 Slots, Charge Only Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD3S4T-RFD40-TC2X-COM-1R - RFD40, 3 Slots, Communication Cradle with support for TC21/26
• CRD3S4T-RFD40-EC5X-COM-1R - RFD40, 3 Slots, Communication Cradle with support for EC50/55
• CR40-3S4T-TC5-M-01 - RFD40, 3 Slots, Communication Cradle with support for TC51/52/52x/52ax/56/57/57x
• CRD3S4T-RFD49-UNIV-COM-1R- RFD40, 3 Slots, Charge+Communication Cradle with support for Universal/3rd Party.

Required Accessories for Multi slot Charging Cradles:

• PWR-BGA12V108W0WW - Power Supply
• CBL-DC-382A1-01 - DC Line Cord
• 23844-00-00R - AC Line Cord

Device Mounts:

• Zebra RFD40 Sled Bluetooth Adaptor for OtterBox uniVERSE Cases (ADP-RFD40-BT-1R)
• Zebra RFD40 Sled eConnex Adaptor for TC21/26(ADP-RFD40-TC2X-1E)
• Zebra RFD40 Sled eConnex Adaptor for TC53/58(ADP-RFD40-TC5X-2E)

Battery charger:

SAC-TC8X-4SCHG-01- 4-slot spare battery charger

Zebra OneCare Option:

• Z1AE-RFD40X-3C00 - 3 Years Zebra OneCare Essential RFD40X, 3-day TAT, purchased within 30 days, comprehensive.

What is included?

• Zebra RFD40 Premium UHF RFID Sled Unit
• Battery
• Lanyard
• Quick Start Guide
• One Year Standard Manufacturer Warranty

What is the maximum read rate of the Zebra RFD40 Premium UHF RFID Sled?

The Zebra RFD40 Premium UHF RFID Sled has a maximum read rate of up to 1,300 tags per second.

What mobile devices are compatible with the Zebra RFD40 Premium sled?

 The sleds can connect instantly to supported Zebra eConnex™-enabled devices including the TC21/26, EC50/55, and future models.

What is the read range of the Zebra RFD40 Premium sled?

The read range of the Zebra RFD40 Premium sled depends on several factors, including the type of RFID tag being used, the power settings of the device, and the environment in which it is being used. In general, the device can read tags at a range of up to ~19.7+ ft./ ~6+ m.

What is the Zebra RFD40 Premium RFID Sled?

The Zebra RFD40 Premium RFID Sled is a high-performance, handheld UHF RFID reader designed for enhanced data collection and asset tracking.

How does the Zebra RFD40 Premium RFID Sled work?

The RFD40 Premium RFID Sled works by using UHF radio waves to read data to RFID tags. It pairs with mobile devices to provide accurate and efficient RFID tag scanning.

What are the key features of the Zebra RFD40 Premium RFID Sled?

Key features include:

• Superior read range and accuracy
• Fast RFID tag read rates
• Durable, rugged design
• Multiple connectivity options
• Easy integration with mobile devices

What is the typical read range of the Zebra RFD40 Premium RFID Sled?

The typical read range of the Zebra RFD40 Premium RFID Sled can extend up to 20 feet (6 meters), depending on the environment and tag type.

What connectivity options are available with the Zebra RFD40 Premium RFID Sled?

The RFD40 Premium RFID Sled offers Bluetooth and USB connectivity, allowing seamless integration with a variety of mobile devices and systems.

What are the typical applications of the Zebra RFD40 Premium RFID Sled?

Typical applications include:

• Inventory management
• Asset tracking
• Retail operations
• Supply chain and logistics
• Healthcare asset management

How is the Zebra RFD40 Premium RFID Sled powered?

The RFD40 Premium RFID Sled is powered by a rechargeable battery that provides long-lasting operation for extended use in the field.

Is the Zebra RFD40 Premium RFID Sled rugged and durable?

Yes, the Zebra RFD40 Premium RFID Sled is built to withstand harsh environments, featuring a rugged design that can endure drops, dust, and moisture.

What is the price of the Zebra RFD40 Premium RFID Sled in India?

For the latest pricing of the Zebra RFD40 Premium RFID Sled in India, please contact our sales team.

Where can I buy the Zebra RFD40 Premium RFID Sled?

You can buy the Zebra RFD40 Premium RFID Sled online at the RFID4U Store India.
