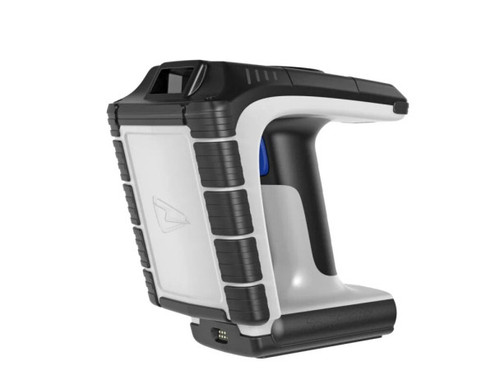

Name: TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader
SKU: TSL 3166
Availability: OutOfStock

Description
Additional Information

Description

The 3166 Bluetooth® Rugged UHF RFID Reader provides high performance UHF RFID reading/writing with all host devices in an ultra-tough and rugged form factor.

Features & Benefits:

Faster tag read rate - Gathers RFID data at a blistering pace - up to 1200 tags per second
Longer Operating Times - Up to 34% increase in battery life compared to the previous generation 2166 Reader
Multiple RF Profiles -

high sensitivity
maximum read rate.
dynamic switching between modes

ETSI Upper Band Option
Bulk encoding feature
Bluetooth® improvements -

Bluetooth Classic speed boost (iOS ~2x speed improvement)
BLE (Bluetooth Low Energy) enabled - no need for MFI (Apple) app registration
Independent battery status and device information service

Hardware and OS Independence - Operates with Android, iOS, Linux, Mac and Windows.
High Performance Barcode Scanning - An optional barcode engine can be specified to provide 1D and 2D barcode data capture

TSL	1153	1128	2128	2128P	2128L	1166	3166
Read Range	Up to 2 m (6.5 ft)	Up to 5.5 m (18 ft)	Up to 6 m (19.6 ft)	Up to 9 m (29.5 ft)	Up to 15 m (49 ft)*	Up to 9 m (29.5 ft)	Up to 9 m
Maximum RF Output Power	Up to 26 dBm EIRP	Up to 32 dBm EIRP	Up to 33 dBm EIRP	Up to 34 dBm EIRP	Up to 35 dBm EIRP	Up to 34 dBm EIRP	Up to 30 dBm
IP Rating	IP54	IP54	IP54	IP54	IP54	IP67	IP67*
Bluetooth® version	Bluetooth® 2.1	Bluetooth® 2.1	Bluetooth® 4.2	Bluetooth® 4.2	Bluetooth® 4.2	Bluetooth® 2.1	Bluetooth® v4.2 compliant (v5.1 compatible)
Apple Mfi certified	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Optional 2D barcode	Yes	Yes	No	Yes	No	Yes	Yes
Internal Storage	Up to 32 GB*	Up to 32 GB*	Up to 32 GB*	Up to 32 GB*	16 GB*	16 GB*	Embedded 32GB*
No. of tags that can be Store	Up to 500 million tags	Up to 500 million tags	Up to 500 million tags	Up to 500 million tags	Up to 250 million tags	Up to 250 million tags.	500 million*
Drop Spec	1.2 m*	1.2 m*	1.2 m*	1.2 m*	1.2 m*	1.8 m*	1.8m.
Mounting Options	Wearable	Slide-on Mounts*	ePop-Loq® Mounts	ePop-Loq® Mounts	ePop-Loq® Mounts	Pop-Loq® Mounts	Pop-Loq® Mounts

Ordering Options:

3166-ES1 (ETSI - for operation in Europe*)
3166-EX1 (ETSI - for operation in Europe*)

Accessories Options:

1166-CRD-01-KIT - 1166/3166 Docking Station, 65W PSU and Mini USB lead
1166-00-BA-3000 - Battery, Spare Rechargeable Lithium Polymer - 1166/3166 Reader

Frequently Asked Questions about the TSL 3166 Bluetooth Rugged UHF RFID Reader

What is included in the Box?

TSL 3166 UHF RFID Reader

What is the Standard warranty for the TSL 3166 Reader?

The TSL® 3166 reader is warranted against manufacturing defects for a period of one year (12 months) from the date of shipment.

What operating systems are compatible with the TSL 3166 Reader?

The TSL 3166 Reader is compatible with a wide range of operating systems, including Android, iOS and Windows.

What is a handheld RFID reader?

A handheld RFID reader is a portable device that reads and sometimes writes data to RFID tags using radio waves. It is commonly used for tracking inventory and assets in various industries, offering mobility and ease of use. These readers often include features like barcode scanning and wireless connectivity.

What is the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader?

The TSL 3166 is a robust, high-performance RFID reader designed for industrial and demanding environments. It uses RAIN RFID technology to read UHF tags and offers Bluetooth connectivity for wireless data transfer.

How does the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader work?

The TSL 3166 emits radio waves to communicate with UHF RFID tags within its read range. It captures the data stored on these tags and sends the information to a connected device via Bluetooth for processing and analysis.

What are the key features of the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader?

Key features include:

Rugged design suitable for industrial use
Bluetooth connectivity for wireless data transfer
High-performance UHF RFID reading capabilities
Long battery life for extended use
Compatibility with a variety of devices and software

What is the typical read range of the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader?

The typical read range of the TSL 3166 depends on the environment and the type of RFID tags used.

What connectivity options are available with the TSL 3166?

The TSL 3166 primarily offers Bluetooth connectivity, allowing it to communicate with smartphones wirelessly.

Can the TSL 3166 be used in outdoor environments?

Yes, the TSL 3166 is designed to be used in various environments, including outdoor settings. Its rugged design ensures durability and reliability in harsh conditions.

What are the typical applications of the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader?

Typical applications include inventory tracking, asset tracking, supply chain logistics, warehousing, and retail management.

Does the TSL 3166 support integration with other systems or software?

Yes, the TSL 3166 supports integration with various systems and RFID software, facilitating seamless data transfer and processing.

What is the price of the TSL 3166 Bluetooth Rugged RAIN RFID UHF Reader?

Please contact our sales team for the most accurate and up-to-date pricing information.

View AllClose

Additional Information

AIR PROTOCOL:	EPC Class 1 Gen 2 and EPC C1G2
FREQUENCY:	EU: 865 - 868 MHz
WIRELESS COMMUNICATIONS:	Bluetooth
MEMORY:	Embedded 32GB* storage memory - store up to 500 million date and time stamped EPCs
DATA CAPTURE OPTIONS:	RFID, 2D imager
DIMENSIONS:	178 x 105 x 172 mm (LxWxH)
WEIGHT:	865 g / 30.5 oz (including battery).
OPERATING TEMPERATURES:	-10°C to 55°C (14°F to 131°F).
WARRANTY:	12 month standard warranty
download data sheet:	https://rfid4ustore.in/content/TSL%203166%20Datasheet.pdf
