Description

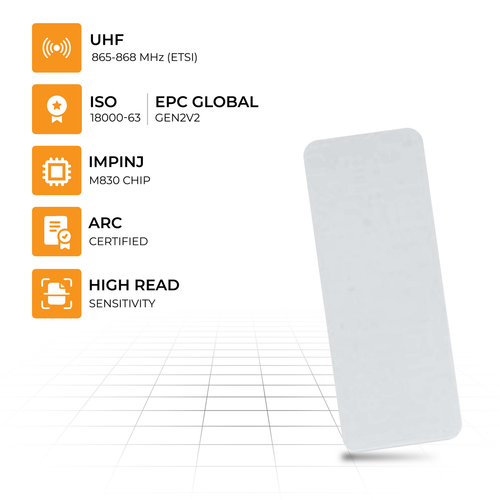

TronRFID-241 M830 Paper Label (44 x 18 mm)
The Tron RFID-241 M830 inlay offers best-in-class performance in a compact 42x16 mm footprint, making it ideal for large-scale retail deployments. It is the first RAIN RFID inlay certified for ARC specs R and Y2, ensuring fast, reliable, and long-range readability across a wide range of apparel and merchandise.
Built on Impinj’s M830 RAIN RFID IC, it features 128-bit EPC memory, improved read sensitivity, AutoTune performance, and efficient backscatter, supporting high-speed inventory counting, loss prevention, and seamless product returns.
Tron RFID 430 meets ARC specifications F, O, Q, R, Y2, W5, and W6.
Application Areas
- Accessories & Jewelry
- Apparel
- Consumer Electronics
- Inventory Visibility
- Supply Chain Management.
Frequently Asked Questions
What is the primary application of the TronRFID-241 M830 label?
This label is ideal for apparel, jewelry, electronics, and supply chain management, offering high-speed readability and accuracy for inventory counting, product returns, and theft prevention.
What chip does this label use, and what are its benefits?
It uses the Impinj M830 chip, which provides 128-bit EPC memory, enhanced read sensitivity, AutoTune functionality, and strong backscatter performance for accurate and long-range reads.
What ARC specifications does this RFID label meet?
The TronRFID-241 M830 is certified for ARC categories F, O, Q, R, Y2, W5, and W6, including the latest R and Y2 specs for modern retail requirements.
What makes this RFID label suitable for compact items?
Its compact antenna size (42 x 16 mm) fits small product tags like accessories or electronics packaging while maintaining excellent performance in dense retail or warehouse environments.
How does the label perform in retail environments?
It delivers fast and reliable reads, supporting high-speed inventory tracking, reducing shrinkage, and streamlining product return processes in large-scale retail deployments.
What materials are used in the label construction?
The label includes a paper thermal transfer face, PET substrate, aluminum antenna, and permanent adhesive, ensuring durability and printer compatibility for large-scale labeling.
What environmental conditions can this label withstand?
It operates in -40°C to +85°C temperatures and 20–90% humidity, suitable for storage rooms, retail floors, warehouses, and logistics centers with varying conditions.
How is quality ensured for each label?
Each RFID label undergoes 100% final inspection and functional testing, ensuring it meets quality standards for consistent, reliable performance in enterprise applications.
Additional Information
IC: |
Impinj M830 |
EPC/User Memory: |
128 bit / - bit |
TID Memory: |
96 bit (incl. 48-bit unique S/N) |
Frequency Band: |
860 - 960 MHz |
Protocol: |
ISO 18000-63 and EPCglobal Gen2v2 |
Antenna Size: |
42 x 16 mm (1.65 x 0.63 in) |
Finish Size: |
44 x 18 mm (1.73 x 0.71 in) |
Web Width: |
48.00 ± 1 mm (1.890 ± 0.04 in) |
Pitch: |
22.23 ± 1 mm (0.875 ± 0.04 in) |
ARC Approval: |
F, O, Q, R, Y2, W5, W6 |
Antenna Material: |
Aluminium |
Face Material: |
Paper TT |
Inlay Substrate: |
PET Clear 50µm |
Inlay Adhesive: |
Permanent |
Liner: |
Paper |
Humidity Range: |
20% to 90% RH |
Shelf Life: |
2 years +25°C/40% RH |
Final Inspection: |
100% tested |
Download Data Sheet: |
https://rfid4ustore.in/content/Tron%20RFID-241%20M830%2044x18%20Paper%20label.pdf |
