TAGMATIKS
TagMatiks RFID Cable eSeal Tag
- SKU:
- TAG-ESEAL-T1
- Availability:
- Please allow 2-3 weeks for delivery.
Description

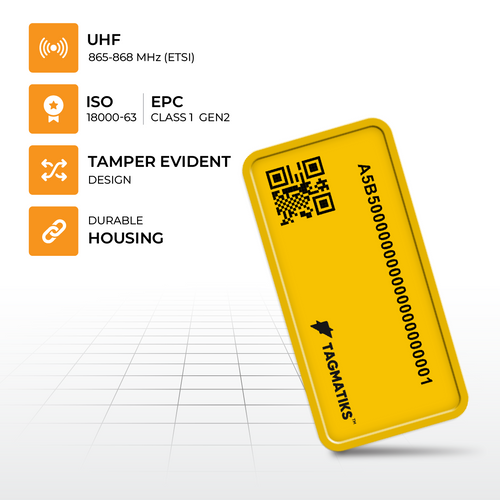

TagMatiks RFID Cable eSeal Tag
RAIN RFID electronic seal with unique serial number. Can be automatically detected when trucks/trailers/containers are on the go at gateways by using RFID gates: this makes gate in/gate out operations faster, more reliable, and more secure.
The Seal is available in a tamper-evident version: the status of the seal (TAMPERED/NOT TAMPERED) is immediately detected and read at the time of passing through the gate or by manual inspection.
TagMatiks RFID Cable Seal Tag combines the mechanical security of standard seals with the electronic security offered by RFID.
The outer shock-proof polystyrene plastic housing of the seal - customizable with marks and numbering on request—embeds a unique electronic chip that has its own unique code, which cannot be replicated. This allows for secure and reliable automatic identification of the seal applied to containers.
Frequently Asked Questions
What is the TagMatiks RFID Cable eSeal Tag used for?
This RFID eSeal tag is designed for securing containers, trailers, or cargo with electronic and mechanical protection, offering both tamper evidence and real-time tracking via RFID.
How does the tamper detection feature work?
The tag has a built-in tamper status that changes from NOT TAMPERED to TAMPERED if the seal is broken. This status can be instantly read at RFID gateways or via handheld readers.
What is the read range of the RFID eSeal Tag?
It offers up to 3 meters with handheld RFID readers and 8 meters at gate readers, ensuring quick and secure gate-in/gate-out operations for vehicles and containers.
Is the tag compliant with industry standards like ISO 17712?
Yes, the RFID Cable eSeal Tag meets ISO 17712:2013 for mechanical seals and EPC C1G2 / ISO18000-63 for RFID compliance, making it suitable for global logistics operations.
Are RFID eSeals reusable?
No, RFID cable seals like this one are single-use, tamper-evident devices that must be replaced once broken for maximum security.
Can this tag be used outdoors?
Yes, with an IP65 rating, it withstands dust, splashes, and outdoor use within the operating temperature range of -20°C to +55°C.
What makes RFID eSeals better than traditional cable seals?
They offer automatic identification, tamper alerts, and electronic records, making them more secure and efficient for high-value shipments.
Additional Information
Tag Type: |
Passive |
Standard Compliance: |
EPC C1G2 / ISO18000-63 |
EPC Memory Size: |
128 bit up to 448 bit |
TID Memory Size: |
96 bit, including 48-bit factory locked unique serial number; 112 bit User TID memory |
User Memory Size: |
640 bit |
Access Control: |
Yes |
Memory Retention: |
20 years |
Memory Endurance: |
10000 cycles |
Read Range by Handheld Reader: |
3m in air @ 1W ERP |
Read Range by Gate Reader: |
8m in air @ 2W ERP |
Frequency: |
865-868 MHz |
Integrated Circuit: |
NXP G2iM+ |
Tamper Detection: |
Yes |
Operative Temperature: |
-20°C to +55°C |
Storage Temperature: |
-30°C to +80°C |
IP Rating: |
IP65 |
ISO 17712:2013: |
Yes |
Electronic Part Size( Flag): |
(L) 42 x (W) 115 x (H) 4 mm3 |
Standard Wire Length: |
337 mm |
Wire Diameter: |
3,5mm |
Weight: |
61 g |
Material: |
Carbonitrured steel + shock-proof polystyrene in accordance with RoHS, European Directive 2002/EC |
Download Data sheet: |
https://rfid4ustore.in/content/TagMatiks%20RFID%20Cable%20Seal%20Tag.pdf |
