TronRFID

TronRFID Integrated RFID Portals

(No reviews yet) Write a Review
SKU:
TRS220080
  • Application of TronRFID Integrated RFID Portals
  • Application of TronRFID Integrated RFID Portals in warehouse
  • Application of TronRFID Integrated RFID Portals with stack light
  • Dimension  of TronRFID Integrated RFID Portals
  • TronRFID Integrated RFID Portals with Small portal
  • TronRFID Integrated RFID Portals
₹175,950
Frequently bought together:

Description

TronRFID Integrated RFID Portals

TronRFID Portals assist organizations in automated inventory and asset tracking, facilitating efficient operations, inventory management, cost control, and workflow optimization.

Featuring specially designed antennas and tuning, TronRFID portals deliver precise readings without interference or extraneous data capture.

Advance AI-driven Features

  • Read Accuracy & Error Handling: Ensures reliable tag detection and minimizes false reads.
  • Dynamic Antenna Tuning: Optimizes antenna performance based on environmental feedback.
  • Anomaly Detection: Flags unusual tag behavior or system faults.
  • Smart Dock Scheduling: Uses AI to allocate dock slots based on real-time demand and flow.
  • Demand Forecasting: Predicts inventory movement and portal usage trends.
  • Predictive Maintenance: Anticipates hardware failures before they occur.
  • AI-Driven Alerts & Operator Guidance: Provides contextual prompts and multilingual instructions.

Portal Spec Overview

Specification / Characteristic

Large Portal (per panel)

SKU: TRS230080

Small Portal (per panel)

SKU: TRS220080

Purpose / best fit

Full-height doorway, pallet/trolley scanning, conveyor portals, retail exit gates

Benchtop, access control, hand-carry item gates, kiosk height

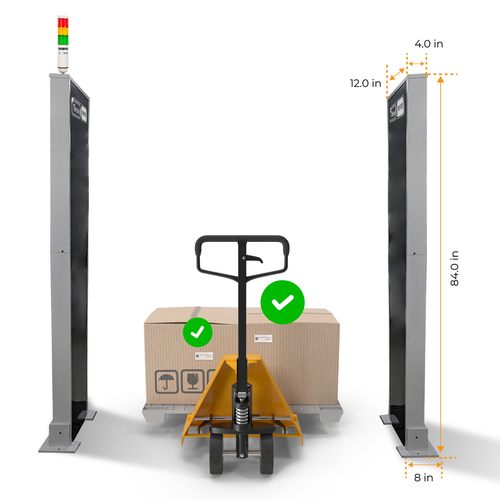

Dimensions (L × W × H)

304.8 × 100 × 2134.0 mm (12.0 × 4.0 × 84.0 in)

304.8 × 100 × 1143.0 mm (12.0 × 4.0 × 45.0 in)

Footprint (base)

394 x 203 mm (15.5 x 8 in)

394 x 203 mm (15.5 x 8 in)

Weight (per panel)

20 kg

15 kg

Antenna count (embedded)

2 (vertically stacked/coordinated)

1

Antenna type

Circular-polarized, high-efficiency UHF patch (factory tuned)

Circular-polarized, high-efficiency UHF patch (factory tuned)

Antenna gain

7 dBi

7 dBi

E/H plane beamwidth

60°

60°

Operating frequency

865–868 MHz

865–868 MHz

Max. ERP (regulated)

2 W

2 W

Polarization

Circular (reduces orientation sensitivity)

Circular (reduces orientation sensitivity)

Connectors / cables

TNC → SMA low-loss RF cable (included)

TNC → SMA low-loss RF cable (included)

Reader compatibility

Impinj R700, Zebra 9600, Zebra FX7500 (mounting & cabling ready)

Impinj R700, Zebra 9600, Zebra FX7500 (mounting & cabling ready)

Power options

PoE / PoE+

PoE / PoE+

Mounting

Steel frame stand; 2 mounting holes in foot

Steel frame stand; 2 mounting holes in foot

Construction / face

Steel frame with customizable graphic front panel

Steel frame with customizable graphic front panel

Environmental

-20 °C → +60 °C operating

-20 °C → +60 °C operating

Warranty

1 year standard

1 year standard

Typical recommended uses

Pallet/box throughput gates, full-height personnel/stock movement

Handheld box scan lanes, kiosks, access control points

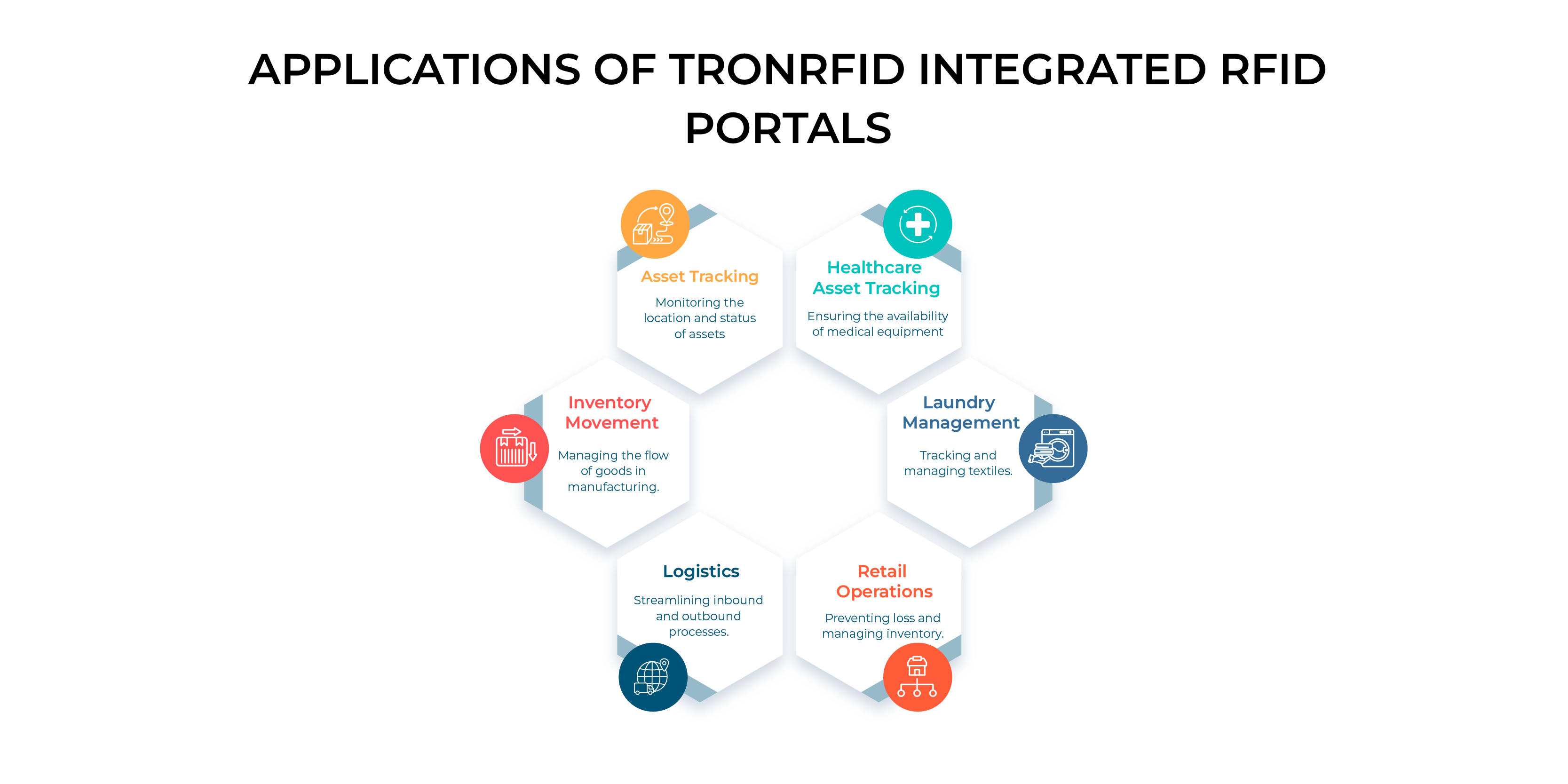

Applications of TronRFID Integrated RFID Portals

TronRFID Integrated RFID Portals are designed to create a controlled, automated read zone for any point where items, assets, or people pass through. This makes them ideal for a wide variety of industries and workflows.

Applications of TronRFID Integrated RFID Portals

Asset Tracking & Movement Monitoring

In offices, data centers, factories, or tool rooms, RFID portals automatically detect tagged assets as they pass through. The system instantly records who moved what and when, without manual scanning, reducing errors and saving time.

Inventory Movement in Manufacturing

On production lines or in storage rooms, RFID portals track parts and materials as they move between work areas. This gives real-time visibility into work in progress, helping keep production and supply perfectly aligned.

Inbound / Outbound Logistics in Warehousing

At warehouse doors or conveyors, portals read entire shipments at once. Inbound goods are verified instantly against shipping notices, while outbound loads are checked in real time to prevent shipping mistakes and costly claims.

Retail Operations & Loss Prevention

In stores, RFID portals track stock moving in and out of storage and act as smart security gates at exits. They log detailed item data, helping reduce losses, avoid stockouts, and improve inventory accuracy.

Laundry & Textile Management

In hotels, hospitals, and laundries, RFID portals scan tagged linens and uniforms as they enter or leave washing areas. This prevents loss, speeds sorting, and ensures accurate tracking from soiled to clean.

Healthcare & Hospital Asset Tracking

In hospitals, RFID portals monitor tagged medical equipment moving between departments. This improves availability, reduces search time, and ensures critical tools like surgical trays arrive where they’re needed on time.

Tip for Deployment:

Position portals at logical choke points where items must pass — e.g., doorways, conveyor transitions, aisle ends. This ensures high read accuracy and reduces false positives from stray tags in surrounding areas.

Reader Options

Reader Options

Technical Overview

Zebra FX7500

Zebra FX7500

  • Designed for business-class environments with moderate tag volumes.
  • Offers fast setup, PoE support, and flexible antenna configurations.
  • Ideal for retail, backroom, and light warehouse use.

Impinj R700

impinj r700

  • Tailored for enterprise-grade IoT solutions with advanced edge processing.
  • Supports modern protocols (REST API, MQTT) and Gen2X features for privacy and performance.
  • Delivers exceptional RF sensitivity and long-range performance
  • Built for rugged, high-throughput environments

Ordering Information

Description SKU Price in INR Price in USD
TronRFID Integrated RFID Portals (Small) TRS220080 ₹175,950 $2,010
TronRFID Integrated RFID Portals (Large) TRS230080 ₹245,150 $2,800
Zebra FX7500 RFID Reader - 4 Ports FX7500-42325A50-WR ₹87,396 $1,016
Impinj R700 RAIN RFID Reader IPJ-R700-241 ₹115,000 $1,337

Accessories

Description SKU Price in INR Price in USD
Stack Light GPIO Kit for Zebra FX7500 RFID Reader - 4 Ports TRS220780 ₹42,000 $488
Stack Light GPIO Kit for Impinj R700 RAIN RFID Reader TRS220880 ₹42,000 $488
Photoelectric Sensor GPIO Kit for Zebra FX7500 RFID Reader - 4 Ports TRS220980 ₹42,000 $488
Photoelectric Sensor GPIO Kit for Impinj R700 RAIN RFID Reader TRS221080 ₹42,000 $488
HSN Code 84716090
COO India

Technical deep dive & explanations

Antennas & RF behaviour

  • Circular polarization (7 dBi): circular polarization makes reads less sensitive to tag orientation — good for mixed orientation items (boxes, cartons, hanging garments). 7 dBi is a medium gain balancing range and beamwidth: it gives usable read distance while keeping a ~60° beam to avoid narrow dead zones.

  • Two antennas in Large Portal: vertically stacked or time-coordinated to create a taller, more uniform read field so tags are read at different heights (shoe level → head level) and to reduce nulls. The Small Portal’s single antenna is optimised for limited height.

  • Low-loss cabling & connectors: included low-loss RF cabling minimizes insertion loss between reader and antenna. TNC→SMA terminations are standard for compact reader enclosures.

Reader & protocol compatibility

  • Impinj R700 / Zebra 9600 / Zebra FX7500: these are common enterprise UHF RFID readers. The portal is mechanically and electrically prepared for these readers (mount points, cable routing).

  • EPC Gen2 / ISO 18000-63: the portal assumes standard EPC Gen2 tags and reader singulation/anti-collision features — the reader handles inventory rounds, tag sessions and Q-adjustment. Use TagMatiks software to map EPC → SKU/asset records.

Power/network & PoE

  • PoE / PoE+: portals are designed to be powered over Ethernet or via PoE+ when additional power is needed (stack light, sensors, reader under load). PoE simplifies installation — a single Ethernet cable provides power + data.

  • Switching & cable runs: standard Ethernet topology applies (Cat6 recommended). Keep cable runs <100 m from PoE switch to portal; for longer runs, use inline PoE extenders or local power feed.

  • Grounding & surge protection: recommended for outdoor/warehouse sites — use Ethernet surge protectors and ensure proper earth bonding to protect reader electronics from transient surges (especially near loading docks).

Mechanical & installation notes

  • Portal Installation Guide – Download Now
  • Stack light Installation Guide – Download Now
  • Panel Stacking Guide – Download Now

Note: Portals are intended for indoor/covered industrial environments. If outdoor use is required, request IP-rated enclosure upgrades (seal, gaskets, drainage) and conformal coating options.

Software/data integration

TronRFID Integrated RFID Portals work effortlessly with TagMatiks AT, enabling real-time, automated asset and inventory tracking. As items pass through the portal, TagMatiks AT instantly captures tag data, updates asset records, and applies business rules such as check-in/out, location change, or maintenance alerts. This integration reduces manual data entry, eliminates human error, and provides accurate, centralized visibility of assets, helping organizations optimize workflows, cut costs, and make informed operational decisions.

Add-ons explained

Stack Light- A stack light (also called a signal tower or indicator light) is a visual alert device mounted on portal to show the current status using colored lights.

For example:

  • Green – Everything is okay and reading is complete.
  • Yellow/Amber – Something needs attention.
  • Red – The read didn’t work

Photoelectric Sensor – A small “electronic eye” that spots when a box or item passes through the gate. When it sees the item, it quickly takes a reading of its RFID tag. This helps make sure the item is scanned at exactly the right moment.

What’s included (clean list)

  • 2 portal panels — enclosures with embedded TronRFID antennas

  • Enterprise RFID reader (Choose required specify reader model)

  • Low-loss RF Cables (30" / factory length) — connects B panel → A panel (reader side)

  • Mounting hardware and floor stand with two foot mounting holes

  • Customizable graphic front panel (factory fitted)

  • Documentation: mechanical drawing, portal installation guide.

Frequently Asked Questions

What are TronRFID RFID Portals used for?

TronRFID RFID Portals are used for automated asset tracking and inventory management across various industries, including manufacturing, warehousing, and retail. They enable real-time monitoring of tagged items as they pass through entry/exit points or workflow checkpoints.

What makes TronRFID Portals different from other RFID gates?

These portals are built with specially tuned antennas that offer highly accurate reads while minimizing interference. They’re fully integrated, easy to install, customizable, and compatible with TagMatiks RFID Software.

What is included with the TronRFID Portal system?

Each portal system includes two panels (A & B), RFID antennas embedded in the enclosures, an RFID reader, RF cables, installation hardware, and an optional AC power adapter. The A-panel houses the RFID reader and connections.

What RFID readers are supported?

TronRFID Portals support leading readers, including Impinj R700, and Zebra FX7500. Reader GPIO is also supported for integration with sensors and stack lights.

Are there different size options available?

Yes. There are two size variants:

  • Large Portal: 2134 mm (84”) height – SKU: TRS230080
    Small Portal: 1143 mm (45”) height – SKU: TRS220080

Customized sizes are possible as per business requirements; please contact our sales team for further details.

What type of power is required?

The portal operates using Power over Ethernet (PoE or PoE+), allowing easy installation with a single cable for power and data. An optional AC adapter is also available.

Can the front panel be customized with our branding?

Yes. The graphic face cover of each portal stand is customizable, allowing for company branding or visual integration with your facility environment.

In what environments can the portals operate?

The portals are designed to operate in industrial and commercial environments with a temperature range of -20°C to +60°C, and feature a steel frame construction for durability.

Are optional accessories available?

Yes, the TronRFID Portals offer optional accessories such as a stack light, which provides visual alerts during operation, and a photoelectric sensor that can detect items and trigger reads for increased accuracy and automation.

What warranty is offered with the portals?

Each TronRFID Portal comes with a one-year standard warranty that covers manufacturing defects, effective from the date of invoice.

What are the primary applications of TronRFID RFID Portals?

These portals are primarily used for asset tracking, inventory movement within manufacturing environments, managing inbound and outbound logistics in warehouses, retail inventory control, and access control automation across facilities.

Product Summary (TL;DR—Too Long; Don't Read)

The TronRFID Integrated RFID Portal is a customizable, tunnel-style system with specially tuned antennas and embedded RFID reader (compatible with Impinj R700, Zebra FX7500/FX9600) that automatically captures and processes RFID-tag data (via TagMatiks AT) as assets pass through — handling check-in/out, location updates, or maintenance triggers; it supports PoE or optional AC power, features a durable steel frame operable between –20 °C to +60 °C, offers optional accessories like stack lights and photoelectric sensors, includes two portal panels plus RF cables and mounting hardware, and comes with a one-year warranty.

View AllClose

Additional Information

Physical Characteristics (Each portal side):
Large Portal [Length:304.8 mm (12.0 inch), Width:100.0 mm (4.0 inch), Height:2134.0 mm (84.0 in)] Small Portal [Length:304.8 mm (12.0 in), Width:100.0 mm (4.0 inch), Height:1143.0 mm (45.0 in)]
Base Stand Foot Print:
394 x 203 mm (15.5 x 8 in)
Weight:
Large Portal [20 kg (per panel)] Small Portal [15 kg (per panel)]
Construction:
Steel frame stand with customizable graphic face cover
RFID Readers Compatibility:
Impinj R700, Zebra 9600, Zebra FX7500
Antenna Count:
Large Portal [2 Antenna] Small Portal [1 Antenna]
Operating Frequency:
865-868 MHz
Max. ERP:
2W
Temp. Range:
-20° C to +60° C
Polarization:
Circular Polarization
Gain:
7dbi
E & H plane beamwidth:
60°
RF cables:
Low-loss cables, included
Cable Type:
TNC to SMA
Mounting Options:
Fitted with 2 mounting holes on the foot stand
Power Sources:
POE, POE+
Warranty:
1-year standard warranty
Download data sheet:
https://rfid4ustore.in/content/New%20Flyer%20-%20TronRFID%20Integrated%20RFID%20Portals.pdf
