Description
Impinj Speedway RFID Antenna Hub-
The Impinj Speedway RFID Antenna Hub supports 8 antennas per hub. The RFID Antenna Hub provides a low cost opportunity to create a large, contiguous RFID read zone with many antennas connected to a single reader. The RFID Antenna Hub supports up to 32 antennas connected to a single Speedway Revolution R420 reader.
With the Speedway RFID Antenna Hub, RFID monitoring applications including smart shelves, interactive marketing displays, and document or item tracking, is cost-effective and easy to deploy.
Users will benefit from fast, hassle-free installation and deployment with the Speedway RFID Antenna Hub solution which includes antenna virtualization software, GPIO adapter, and an enclosure with LEDs for system feedback.
Additional Information
FREQUENCY: |
865 to 868 MHz |
CONNECTOR TYPE: |
RF Input: SMA Female 8 RF Outputs: SMA Female 1 Digital I/O: RJ45 |
CABLE TYPE: |
RF cable maximum length: depends on environment/region, typical 1/2 dB per meter signal loss, digital cable (Cat5) for control, maximum length: 300 ft (100 m) if shielded, 100 ft (30 m) if unshielded |
MOUNT: |
Two 1/4 in mounting holes |
DIMENSIONS: |
4 x 2.4 x 1 in (102 x 61 x 24 mm) |
WEIGHT: |
3.5 oz (100 g) |
IP RATING: |
IP52 |
download data sheet: |
https://rfid4ustore.in/content/impinj%20speedway%20antenna%20hub.pdf |
Related Products
Related Products
Impinj Speedway Revolution RFID Reader R220
Impinj
Impinj Speedway Revolution RFID Reader R420
Impinj
Impinj MatchBox RFID Antenna
Impinj

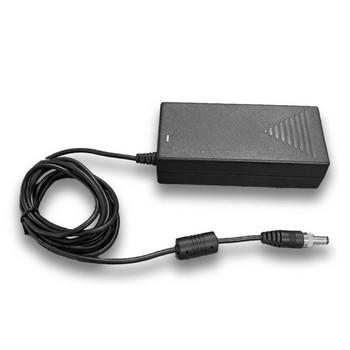

Impinj Universal Power Supply for Speedway RFID Readers
