Description

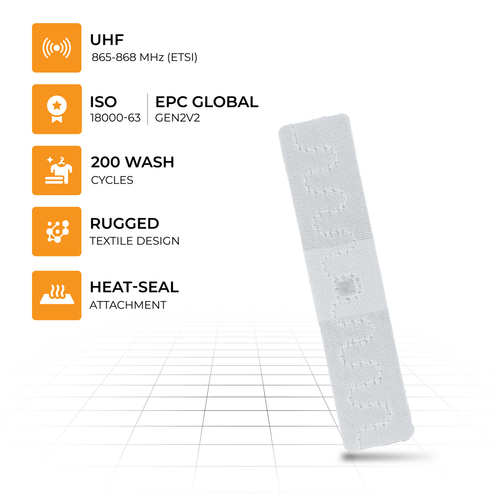

TronRFID Heat-Seal RFID Laundry Tag (70 x 15 mm)
Designed for durability in rigorous laundry environments, the TronRFID Heat-Seal version is ideal for quick and permanent attachment of tags on textile items through heat sealing, especially in high-volume commercial laundries.
We also offer an optional fabric pouch that can be used to insert our tag in it and then sewn onto textile items.
Please contact us for MRI-compatible version
Applications:
- Industrial laundry services
- Uniforms and Workwear Management
- Medical apparel management.
- Hospital linen tracking
- Military clothing management.
- Personnel patrol management.
- Hotel linen management
- Gym towel management
- Spa and wellness center robes and linens
- Sports team apparel
Advantages and Features:
- Rugged Construction for Textile Operations
- Permanent and Quick Attachment
- Tested for over 200 washing cycles with water extractors up to 60 bar.
- Stable and reliable RF performance.
- 100% function tested
- Accurate identification and tracking of textile items
Frequently Asked Questions
What is the TronRFID Heat-Seal RFID Laundry Tag used for?
It’s designed for tracking textile items like uniforms, linens, and towels in commercial laundries, hospitals, hotels, and military applications with high wash-cycle durability.
How is the RFID tag attached to fabric items?
The tag can be heat-sealed directly onto textiles or inserted into an optional fabric pouch, offering a secure and permanent attachment solution for high-volume laundry operations.
How many wash cycles can the tag endure?
The tag is tested for over 200 industrial wash cycles, including exposure to tunnel washers, water extractors, high temperatures, and harsh chemicals, ensuring long-term durability.
What is the read range of the RFID tag?
The tag offers a read distance of up to 5.5 meters (2W ERP), enabling efficient tracking and identification during bulk scanning operations.
What RFID frequency and protocols does it support?
It supports 865–868 MHz (ETSI) and 902–928 MHz (FCC) frequencies and is compliant with ISO 18000-63 and EPCglobal Gen2v2 standards for global interoperability.
Is the tag chemically resistant?
Yes, it is resistant to all standard chemicals used in the laundry process, maintaining performance and durability in harsh washing and sterilization environments.
Additional Information
Compliance: |
ISO 18000-63 and EPCglobal Gen2v2 |
Frequency: |
865~868MHz, or 902~928MHz |
Chip: |
NXP U9/U9xe |
Memory: |
NXP U9 - EPC - 96bits,USER - NIL, NXP U9xe - EPC - 128bits,USER - NIL |
Read/Write: |
Yes |
Cycle Endurance/Data Retention: |
100,000/ 20 Years @ Tamb ≤ 55 °C |
Read Distance: |
Up to 5.5 meters (ERP=2W) |
Dimension: |
70 x 15 x 1.5 mm / 2.756 x 0.398 x 0.059 inch |
Weight: |
~ 0.6g |
Assembly Method: |
Heat sealing under 215℃@12-15 seconds, 0.6 MPa~0.8 MPa /inserted inside pouch |
Storage Temperature: |
-40℃~ +85 ℃ / -40F~ +185 F |
Max. Temperature: |
220 °C( 428°F) / 30 seconds |
Tunnel Washer: |
90℃(194°F), 15 minutes, 200 cycles |
Sterilization Process: |
135℃ (275οF), 20 minutes |
Ironer: |
180℃ (356 F), 10 seconds, 200 cycles |
Water Extractor: |
Up to 60 bars |
Chemical Resistance: |
All standard chemicals used in the laundry process |
Warranty: |
200 wash cycles or 2 years from shipping date (whichever comes first) |
Download Data Sheet: |
