TronRFID
TronRFID Poly Label (47 x 23 mm) with Special Adhesive
- SKU:
- TR-7214-SA-10
Description
TronRFID Poly Label (47 x 23 mm) with Special Adhesive
The Tron RFID-261 M830 inlay offers enhanced performance in a compact footprint, making it ideal for retail, logistics, automotive, and industrial applications.
Powered by Impinj’s M830 RAIN RFID IC, it features 128-bit EPC memory, improved read sensitivity, AutoTune functionality, and efficient backscatter, supporting high-speed inventory counting, loss prevention, and seamless product returns.
This label features special 3M 300LSE high-strength adhesive famous for creating powerful, lasting bonds on hard-to-stick low surface energy (LSE) plastics like polypropylene. Its versatility allows it to adhere reliably to a wide range of materials, including powder-coated paints and even lightly oily surfaces. This makes it a go-to solution for demanding electronic, automotive, and industrial applications
TronRFID Poly Label (47 x 23 mm) meets ARC specifications F, O, Q, R, Y2, W5, and W6.
Applications:
→ Item Level Tagging
→ Apparel
→ Consumer Electronics
→ Inventory Visibility
→ Pharma & Healthcare
→ Supply Chain Management.
FAQs
What is the size of the TronRFID Poly Label?

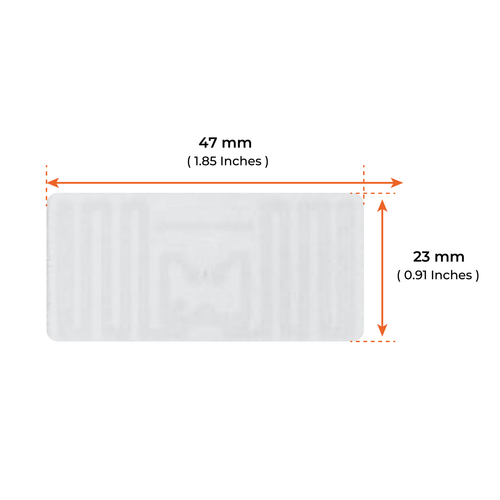

The label measures 47 x 23 mm, making it compact yet highly effective for various tagging applications.
Which RFID chip does this label use?
It is powered by Impinj’s M830 RAIN RFID IC, offering enhanced read sensitivity, efficient backscatter, AutoTune functionality, and 128-bit EPC memory.
What industries commonly use this RFID label?
The label is widely used in retail, logistics, automotive, electronics, industrial, pharma, and healthcare applications.
Does this label meet ARC specifications?
Yes, the TronRFID Poly Label complies with ARC specifications F, O, Q, R, Y2, W5, and W6.
Why is the 3M 300LSE adhesive important?
This adhesive is known for creating durable, long-lasting bonds on hard-to-stick materials, ensuring reliable performance in demanding environments.
How does the label support inventory management?
With high read sensitivity and fast data processing, the label enables real-time inventory visibility, high-speed counting, loss prevention, and smooth product returns.
Additional Information
IC: |
Impinj M830 |
EPC/User Memory: |
128 bit / - bit |
TID Memory: |
96 bit incl. 48 bit unique S/N |
Frequency Band: |
865 - 868 MHZ (ETSI) , 902 - 928 MHZ (FCC) |
Protocol: |
ISO 18000-63 and EPCglobal Gen2v2 |
Antenna Size (mm): |
44 x 20 mm (1.73 x 0.79 in) |
Finish Size (mm): |
47 x 23 mm (1.85 x 0.91 in) |
Web Width (mm): |
50.00 ± 1 mm (1.969 ± 0.04 in) |
Pitch (mm): |
26.04 ± 1 mm (1.025 ± 0.04 in) |
ARC Approval: |
F, I, O, Q, R, Y2, W5, W6 |
Antenna Material: |
Aluminium |
Face Material: |
Polyester (others on request) |
Inlay Substrate: |
PET Clear 50µm |
Inlay Adhesive: |
High-performance adhesive specially for low surface energy plastics, 3M 300LSE Adhesive |
Liner: |
Paper |
Humidity Range: |
20% to 90% RH |
Shelf Life: |
2 years +25°C/40%RH |
Final Inspection: |
100% tested |
Download Data Sheet: |
https://rfid4ustore.in/content/TronRFID%20Label%20%2847%20x%2023%20mm%29%20with%20special%20Adhesive.pdf |
